Packaging units

We offer you different cables on different drums, boxes etc.
Here you will find the list of all common products.

Dimensions

Paper spool P200

Article number: 161

Width D mm:	200	Core hole b mm:	26	Height inside L1 mm:	150
Tara kg:	0,20	Core diameter d mm:	80	Total height L2 mm:	155
Volume dm³:	3,56

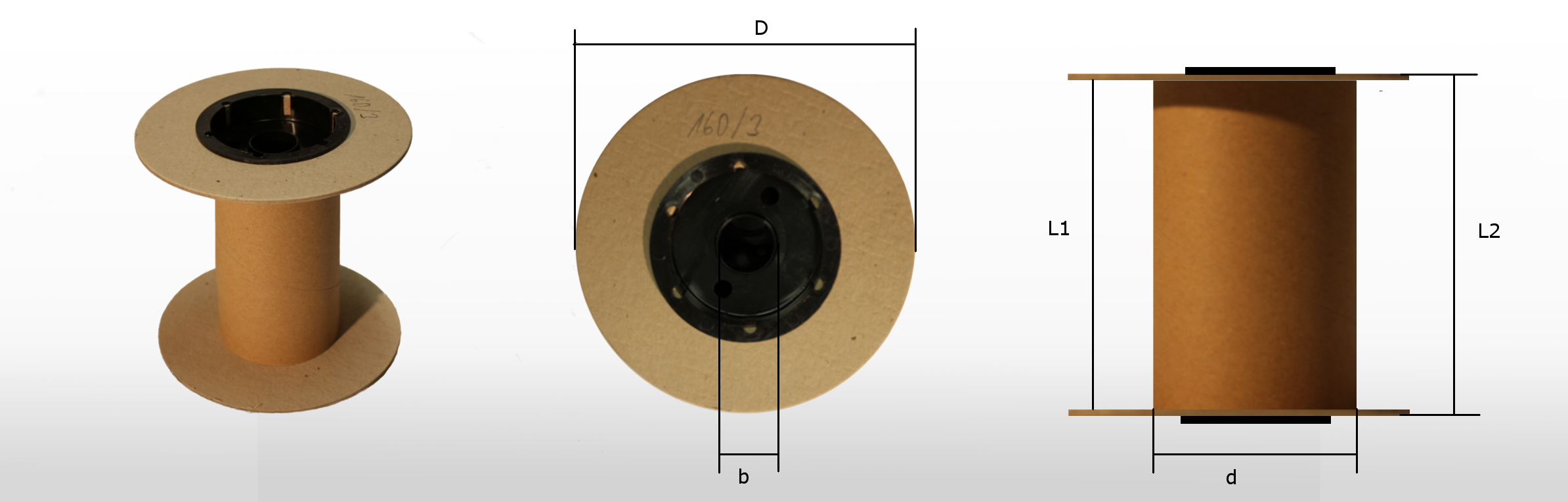

Paper spool P160/3

Article number: 160

Width D mm:	160	Core hole b mm:	26	Height inside L1 mm:	145
Tara kg:	0,15	Core diameter d mm:	80	Total height L2 mm:	150
Volume dm³:	1,98

Paper spool P160/2

Article number: 160

Width D mm:	160	Core hole b mm:	26	Height inside L1 mm:	115
Tara kg:	0,15	Core diameter d mm:	80	Total height L2 mm:	120
Volume dm³:	1,56

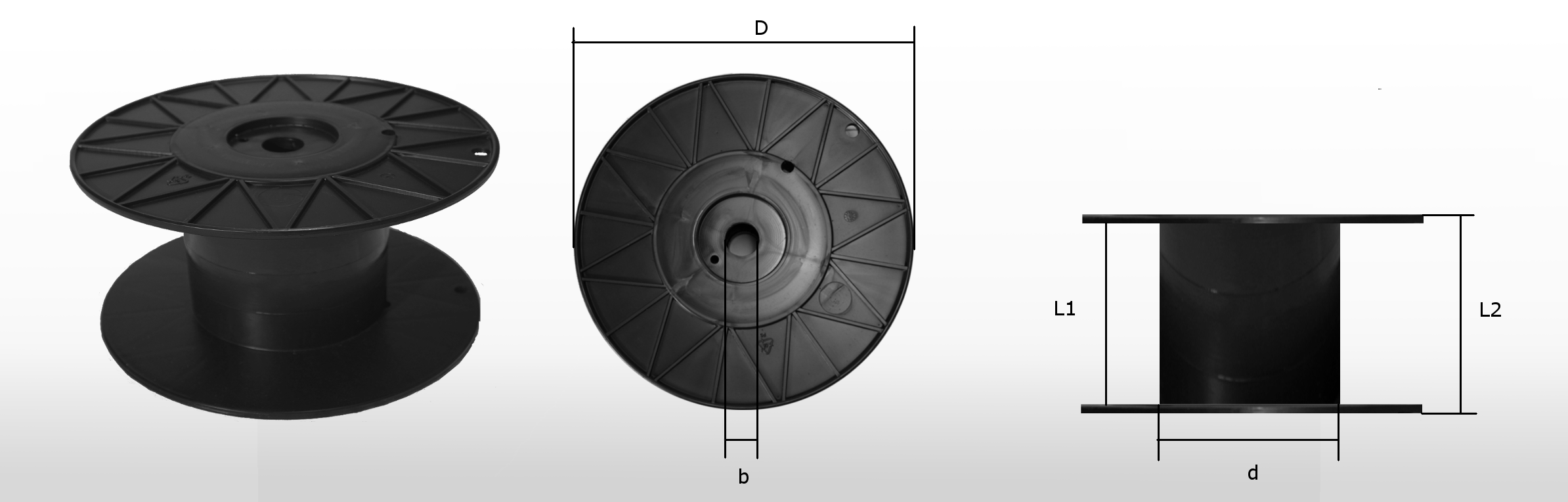

Plastic spool K310/1

Article numberr: 123

Width D mm:	300	Core hole b mm:	30	Height inside L1 mm:	75
Tara kg:	0,85	Core diameter d mm:	160	Total height L2 mm:	90
Volume dm³:	3,74

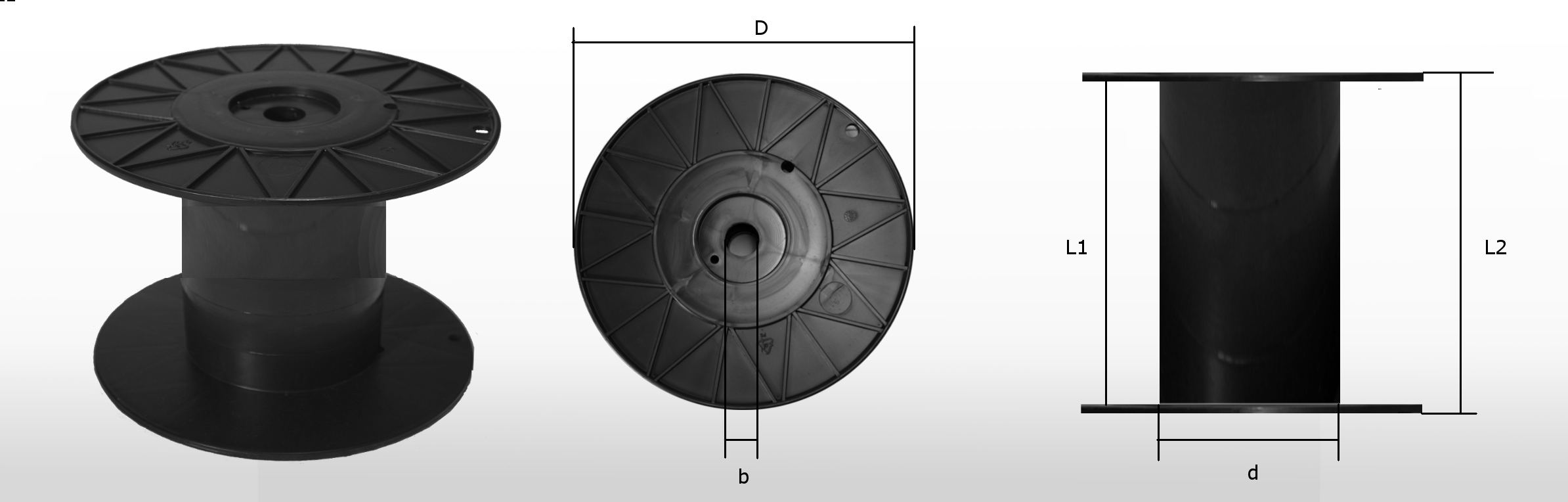

Plastic spool K310/2

Article number: 122

Width D mm:	310	Core hole b mm:	30	Height inside L1 mm:	150
Tara kg:	1,00	Core diameter d mm:	160	Total height L2 mm:	165
Volume dm³:	7,47

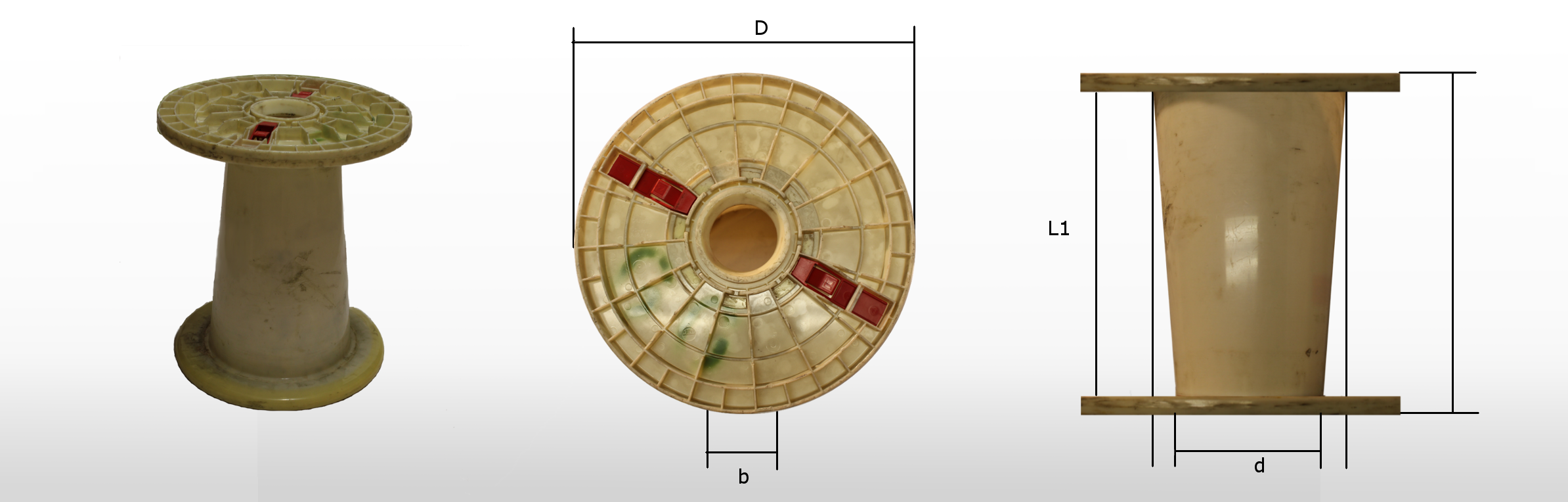

Plastic spool NPS

Article number: 602

Width D mm:	400	Core hole b mm:	80	Height inside L1 mm:	400
Tara kg:	2,60	Core diameter d mm:	176/260	Total height L2 mm:	468
Volume dm³:	31,6			Spool dismountable

Plastic spool K400-K

Article number: 130

Width D mm:	400	Core hole b mm:	60	Height inside L1 mm:	305
Tara kg:	2,10	Core diameter d mm:	155	Total height L2 mm:	350
Volume dm³:	29,30

Plastic spool K400-L

Article number: 131

Width D mm:	400	Core hole b mm:	60	Height inside L1 mm:	405
Tara kg:	2,55	Core diameter d mm:	155	Total height L2 mm:	450
Volume dm³:	38,91			Spool dismountable

Plastic spool K500-K

Article number: 132

Width D mm:	500	Core hole b mm:	60	Height inside L1 mm:	305
Tara kg:	3,10	Core diameter d mm:	155	Total height L2 mm:	350
Volume dm³:	48,70			Spool dismountable

Plastic spool K500-L

Article number: 133

Width D mm:	500	Core hole b mm:	60	Height inside L1 mm:	405
Tara kg:	3,50	Core diameter d mm:	155	Total height L2 mm:	450
Volume dm³:	64,66			Spool dismountable

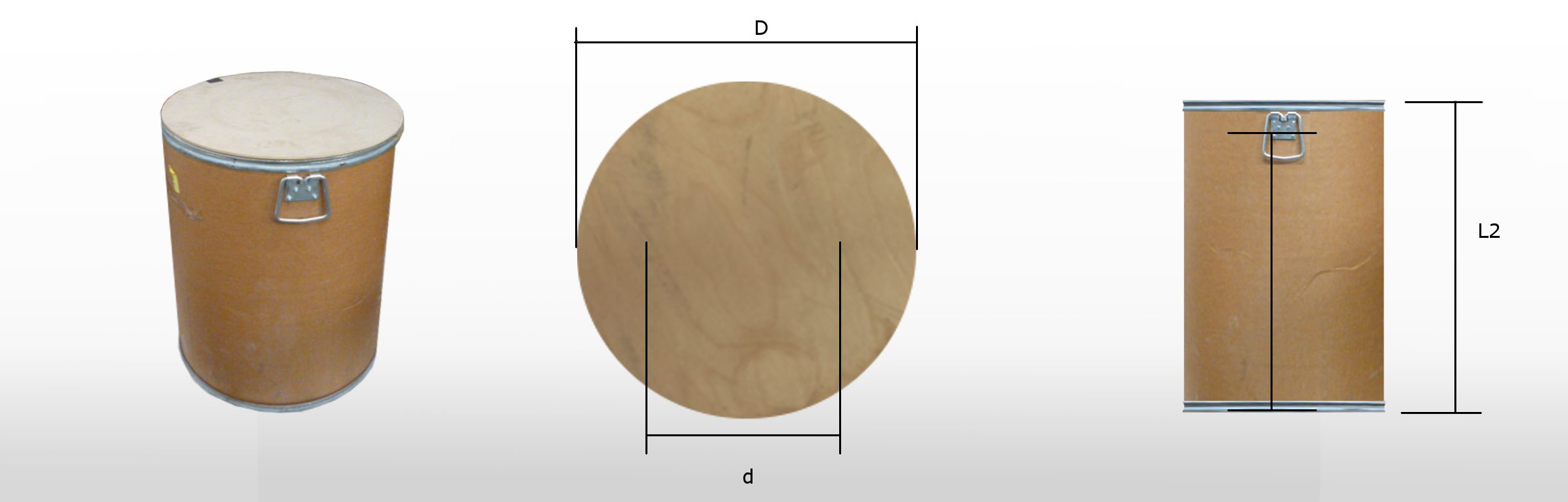

Paper barrel 520x800

Article number: 601

Width D mm:	505	Volume dm³:	79,79	Filling height L1 mm:	740
Tara kg:	6,80	Core diameter d mm:	320	Total height L2 mm:	810

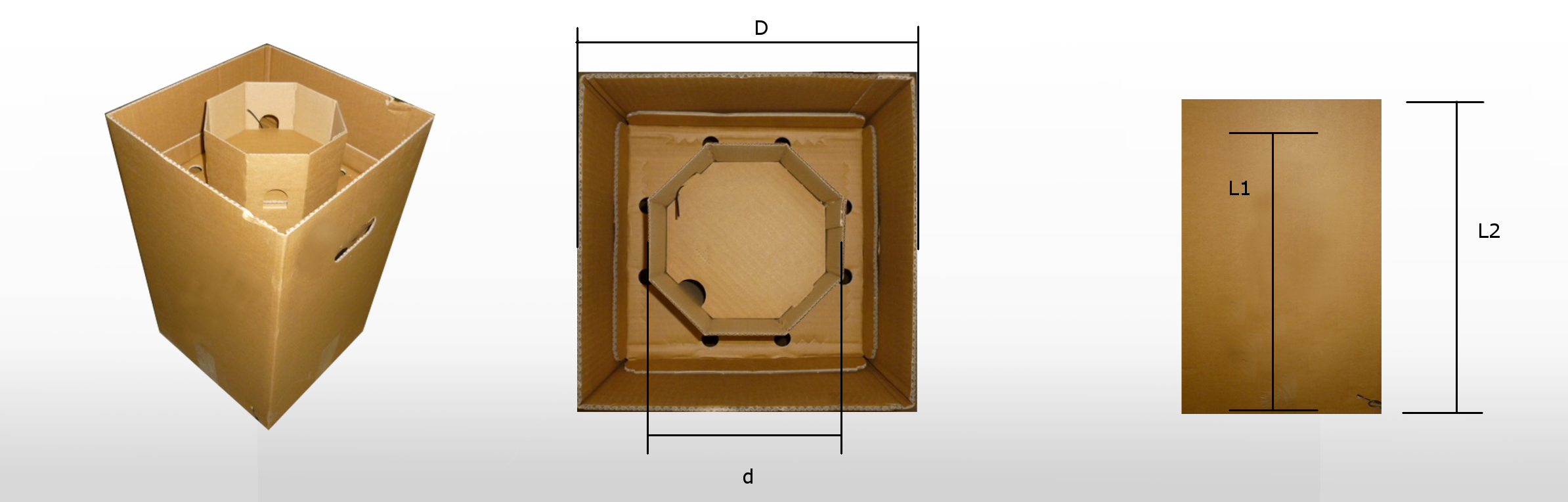

Cardboard barrel EWF

Article number: EWF

Width D mm:	305	Volume dm³:	17,65	Filling height L1 mm:	350
Tara kg:	0,85	Core diameter d mm:	170	Total height L2 mm:	500

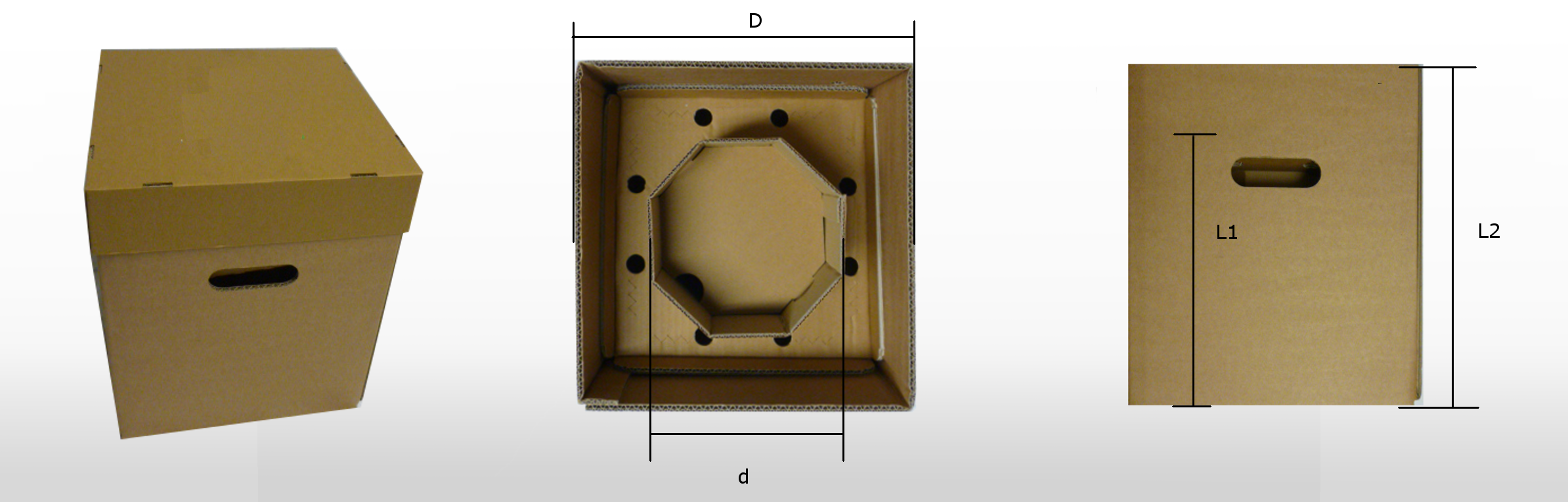

Cardboard barrel small EFK

Article number: EFK

Width D mm:	305	Volume dm³:	11,60	Filling height L1 mm:	230
Tara kg:	0,80	Core diameter d mm:	170	Total height L2 mm:	420

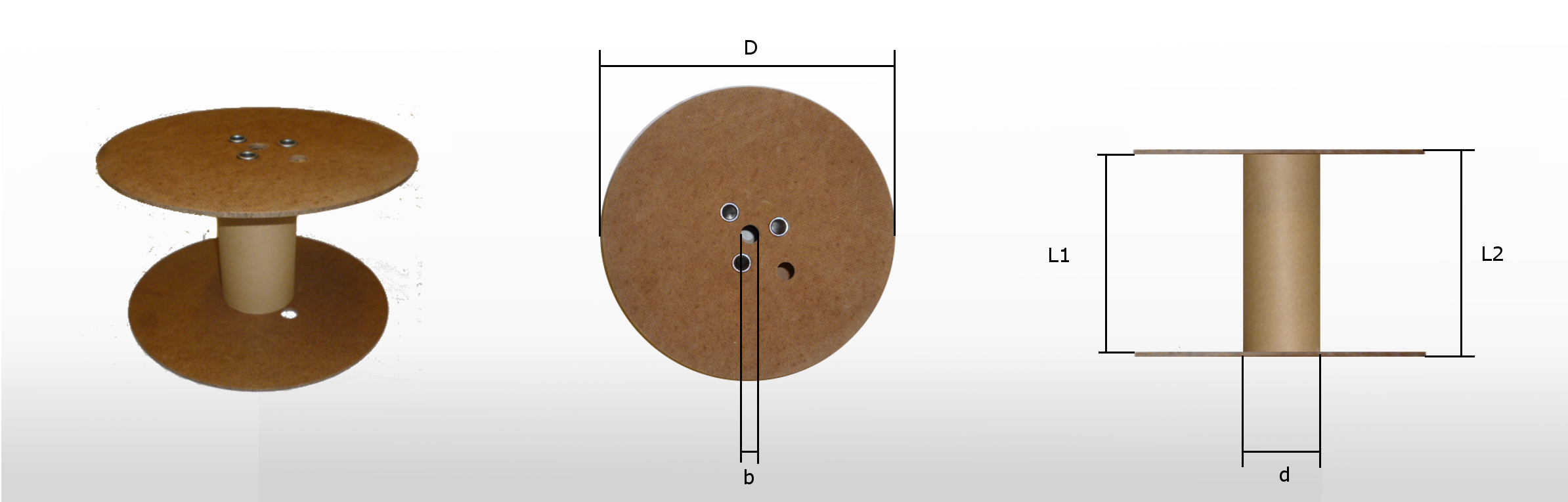

Returnable empties HS350

Article number 205

Width D mm:	350	Core hole b mm:	80	Height inside L1 mm:	202
Tara kg:	1,45	Core diameter d mm:	100	Total height L2 mm:	215
Volume dm³:	16,06

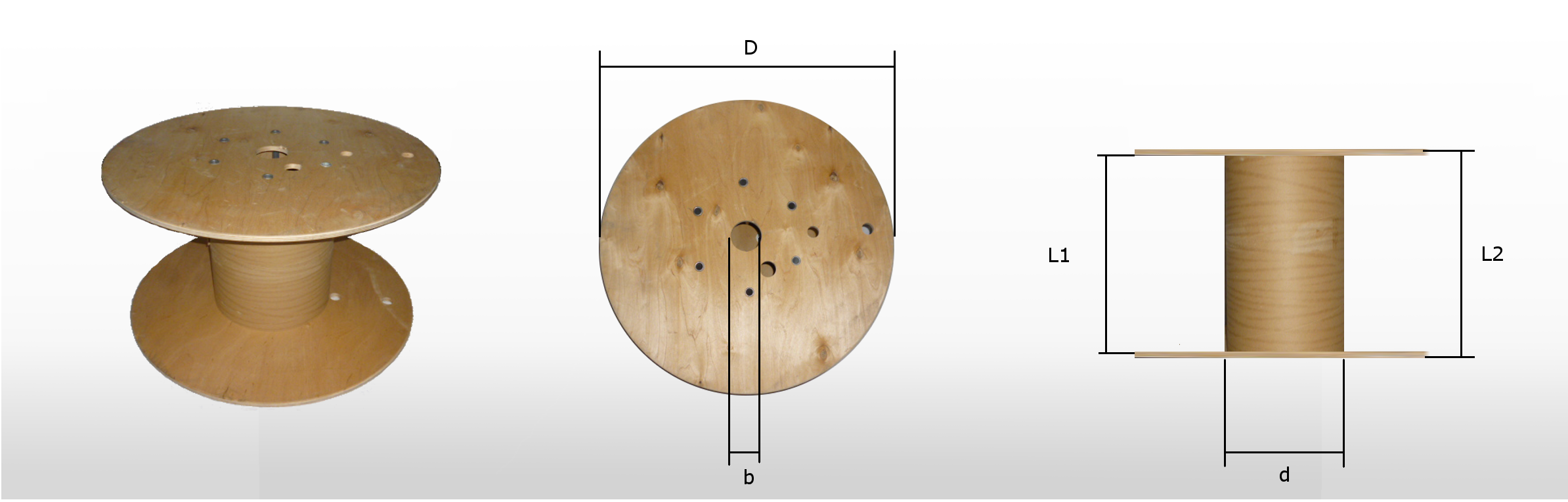

Returnable empties SP700

Article number: 212

Width D mm:	755	Core hole b mm:	80	Height inside L1 mm:	390
Tara kg:	10,05	Core diameter d mm:	310	Total height L2 mm:	420
Volume dm³:	130,58

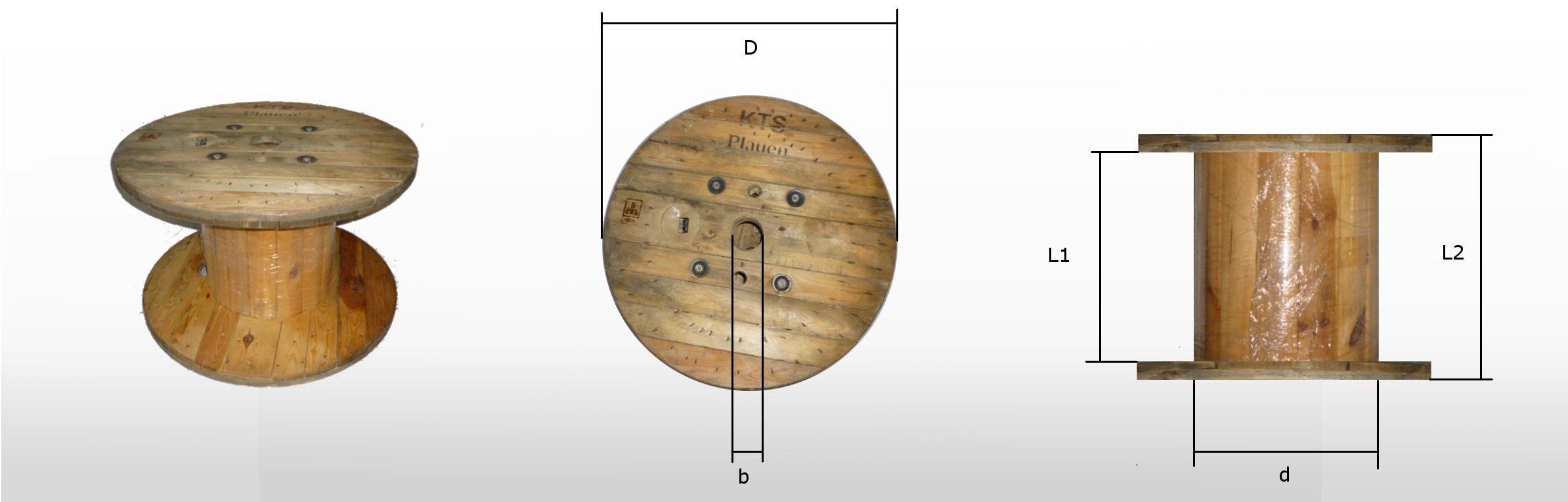

Barrel H1000

Artikelnummer: 400

Width D mm:	970	Core hole b mm:	80	Height inside L1 mm:	570
Tara kg:	28,00	Core diameter d mm:	310	Total height L2 mm:	650
Volume dm³:	340,21

Barrel H800

Article number: 401

Width D mm:	800	Core hole b mm:	80	Height inside L1 mm:	400
Tara kg:	25	Core diameter d mm:	400	Total height L2 mm:	470
Volume dm³:	135,65

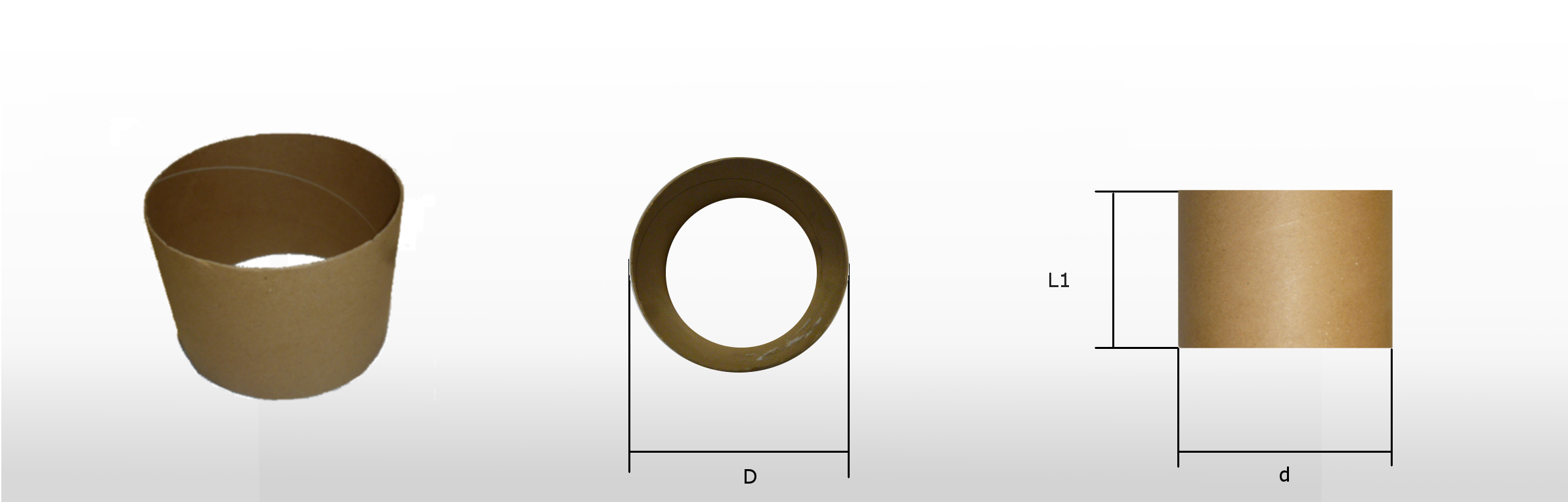

Cardboard core insert for rings

Article number: 777

Width D mm:	127	Height inside L1 mm:	90
Tara kg:	0,040	Volume dm³:	7,2

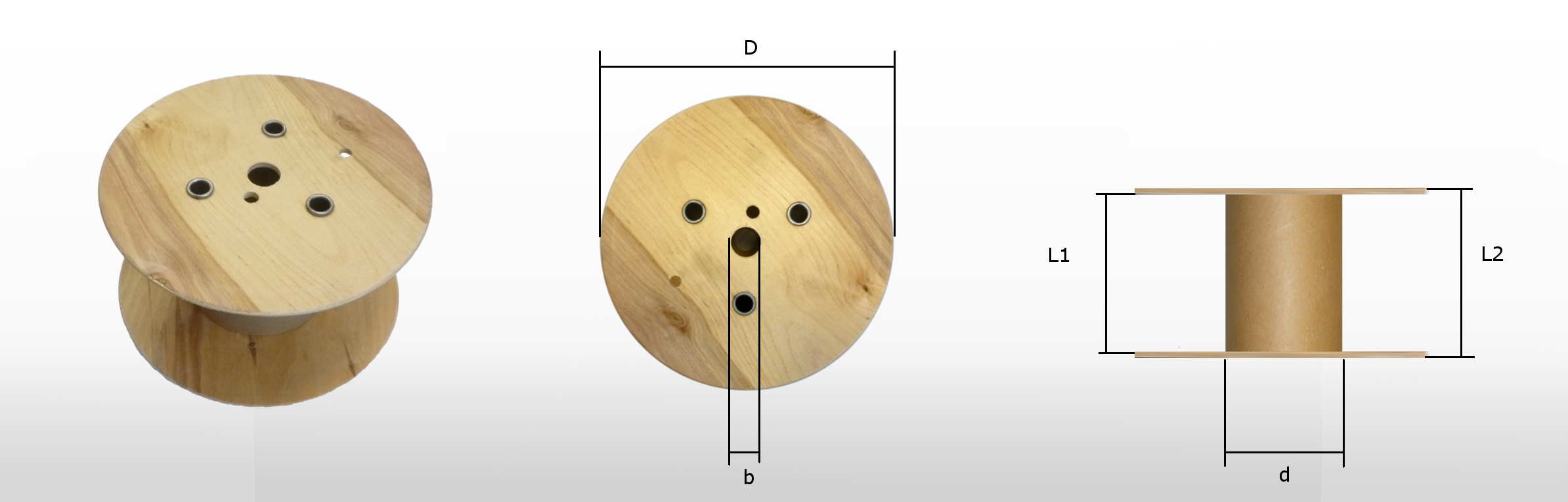

Returnable empties HP310

Article number: 112

Width D mm:	295	Core hole b mm:	30	Height inside L1 mm:	155
Tara kg:	0,96	Core diameter d mm:	150	Total height L2 mm:	165
Volume dm³:	7,84
