Multicore cables UL/CSA, UL-Power cables
Power cables UL, UL-Power cables

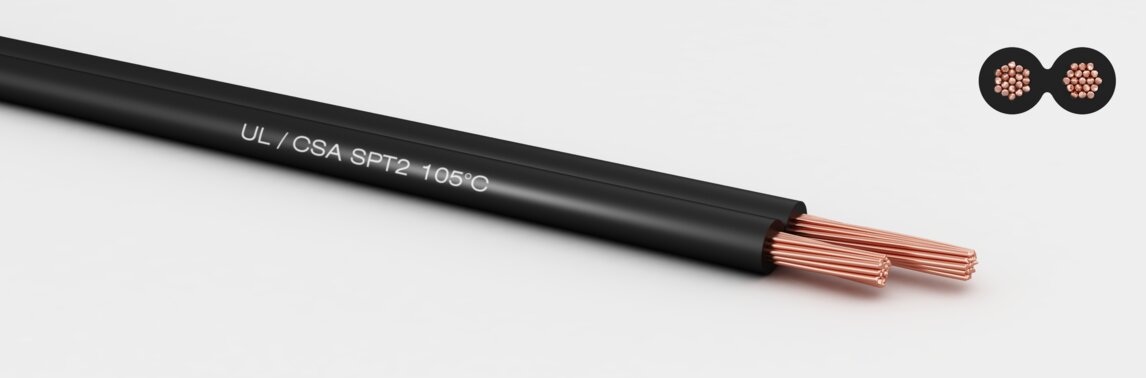

UL/CSA Power cord SPT
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
UL-PVC 105°C
Color code cores:
ICEA standard table 1
Outer sheath:
UL-PVC 105°C
Jacket Colour:
RAL 9005 jet black
technical data
Temperature range static:
0 to 105 °C
Temperature range moved:
0 to 105 °C
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| 300 |
- flame retardant
- self-extinguishing
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|---|
| 2 | 2,72 | 5,33 | 19,20 | 28,70 | 6S2180236N02 | Datenblatt | |
| 2 | 3,61 | 6,73 | 19,20 | 48,00 | 6S2180236N01 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
Canadian Standards Association
UL-Listed
