Multicore cables UL/CSA, PowerPUR - UL ungeschirmt

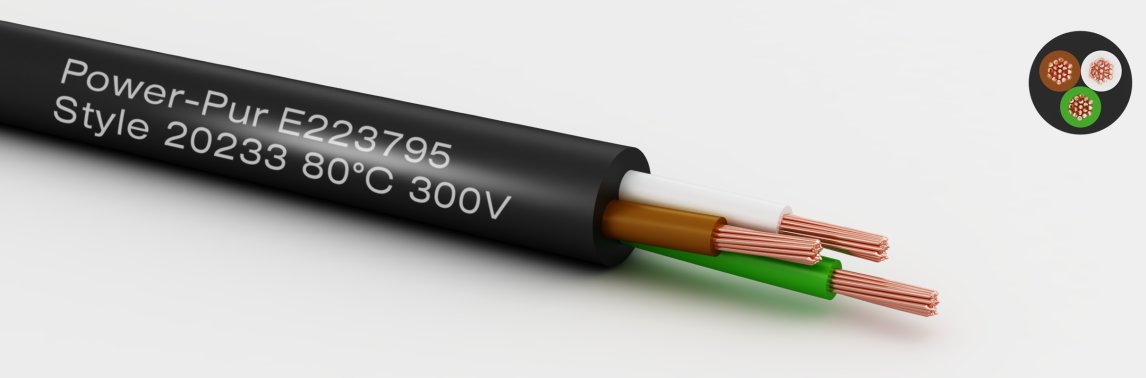

PowerPUR-UL/cUL-Style 20233/10042 AWG20
Properties
halogen-free
good weather resistance
good UV resistance
drag chain capable
helix capable
extensively resistant to oil
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
28x0,15mm
Core Isulation:
TPE 12Y - thermoplastic compound
Color code cores:
DIN 47100
Outer sheath:
UL PUR 11Y - flame retardand
Jacket Colour:
RAL 9005 jet black
technical data
Conduct. cross-sect.:
0,50 mm²
Core diameter:
1,50 mm
:
±0,10
Temperature range static:
-50 to 80 °C
Temperature range moved:
-40 to 80 °C
:
100 MOhm x km bei 20°C (min. )
conductor resist.:
39,0 Ohm/km bei 20°C (max.)
static bending radius:
6,0 x outer diameter
Bending radius dynamic:
12,0 x outer diameter
Wall thickness:
0,76 mm
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| AWM Style 20233 | 300 | 80 | 2000 |
- halogen-free
- good weather resistance
- good UV resistance
- drag chain capable
- helix capable
- flame retardant UL1581 VW-1/UL2556 FV-2; CSA FT1
- extensively resistant to oil
- notch tough
| No.of cores | CU-Index | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|
| 2 | 4,70 | 10,00 | U50500231 | Datenblatt | |
| 3 | 4,95 | 14,40 | U50500331 | Datenblatt | |
| 4 | 5,35 | 19,20 | U50500431 | Datenblatt | |
| 5 | 5,75 | 24,00 | U50500531 | Datenblatt | |
| 6 | 6,20 | 28,80 | U50500631 | Datenblatt | |
| 7 | 6,55 | 33,80 | U50500731 | Datenblatt | |
| 8 | 7,25 | 40,00 | U50500831 | Datenblatt | |
| 10 | 7,80 | 48,00 | U50501031 | Datenblatt | |
| 12 | 8,00 | 57,60 | U50501231 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Kanadischer Markt UL-Recognized
