Multicore cables UL/CSA, PVC - ungeschirmt 80°C
Multicore cables UL/CSA, 3-Norm-control cable

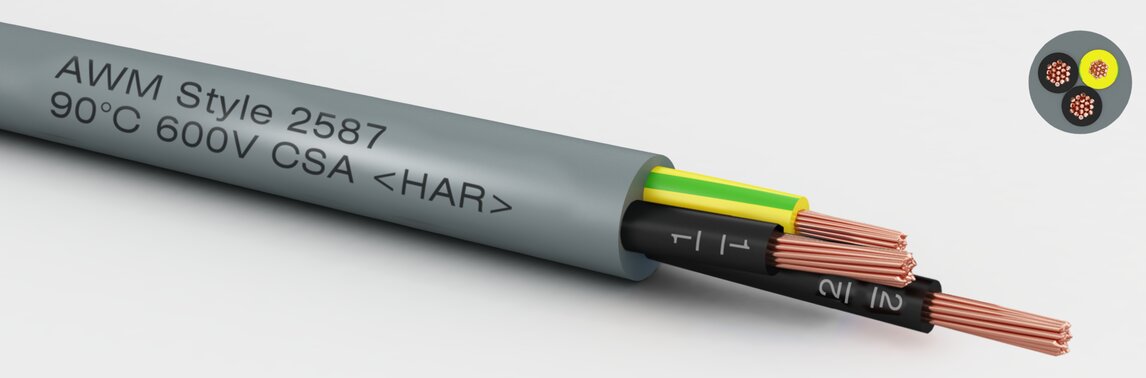

XtraFLEX 3-Norm-JZ HAR/UL/CSA H05VV5-F Style 2587
Properties
self-extinguishing
extensively resistant to oil
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
bk cores with numbers and ye/gn (JZ)
Outer sheath:
PVC oil-resistant
Approval:
248,250,634,254,627,631,632
Jacket Colour:
RAL 7001 silver grey
technical data
Temperature range static:
-5 to 90 °C
Temperature range moved:
-5 to 90 °C
static bending radius:
4,0 x outer diameter
Bending radius dynamic:
7,5 x outer diameter
Wall thickness:
0,76 mm
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| H05VV5-F 0,50-2,50qmm | 300 | 500 | 90 | 3000 |
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| AWM Style 2587 | 600 | 90 | |
| CSA 22.2 no.210 AWM | 600 | 90 |
- self-extinguishing
- flame retardand: IEC/EN 60332-1-2
- flame retardant UL1581 VW-1/UL2556 FV-2; CSA FT1
- extensively resistant to oil
Select visible columns
informationNo.of coresCross sectional area m²StrandingCU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Stranding | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 3 | 0,50 | EN 60228; cl. 5 | 6,20 | 14,40 | 63,00 | 622500314 | Datenblatt | |
| 4 | 0,50 | EN 60228; cl. 5 | 6,80 | 19,20 | 69,00 | 622500414 | Datenblatt | |
| 5 | 0,50 | EN 60228; cl. 5 | 7,40 | 24,40 | 87,00 | 622500514 | Datenblatt | |
| 7 | 0,50 | EN 60228; cl. 5 | 9,10 | 34,00 | 119,00 | 622500714 | Datenblatt | |
| 12 | 0,50 | EN 60228; cl. 5 | 11,10 | 58,00 | 198,00 | 622501214 | Datenblatt | |
| 3 | 0,75 | EN 60228; cl. 5 | 6,70 | 22,00 | 60,00 | 622750314 | Datenblatt | |
| 4 | 0,75 | EN 60228; cl. 5 | 7,20 | 29,00 | 85,00 | 622750414 | Datenblatt | |
| 5 | 0,75 | EN 60228; cl. 5 | 8,10 | 36,00 | 112,00 | 622750514 | Datenblatt | |
| 7 | 0,75 | EN 60228; cl. 5 | 9,90 | 50,40 | 145,00 | 622750714 | Datenblatt | |
| 12 | 0,75 | EN 60228; cl. 5 | 12,00 | 86,40 | 245,00 | 622751214 | Datenblatt | |
| 18 | 0,75 | EN 60228; cl. 5 | 13,90 | 130,00 | 325,00 | 622751814 | Datenblatt | |
| 25 | 0,75 | EN 60228; cl. 5 | 17,10 | 180,00 | 466,00 | 622752514 | Datenblatt | |
| 3 | 1,00 | EN 60228; cl. 5 | 7,20 | 29,00 | 73,33 | 622100314 | Datenblatt | |
| 5 | 1,00 | EN 60228; cl. 5 | 8,70 | 48,00 | 132,00 | 622100514 | Datenblatt | |
| 7 | 1,00 | EN 60228; cl. 5 | 11,50 | 67,20 | 170,00 | 622100714 | Datenblatt | |
| 12 | 1,00 | EN 60228; cl. 5 | 13,00 | 116,00 | 285,00 | 622101214 | Datenblatt | |
| 18 | 1,00 | EN 60228; cl. 5 | 15,40 | 173,00 | 405,00 | 622101814 | Datenblatt | |
| 4 | 1,50 | EN 60228; cl. 5 | 8,90 | 58,00 | 141,00 | 622150414 | Datenblatt | |
| 5 | 1,50 | EN 60228; cl. 5 | 10,00 | 72,00 | 157,00 | 622150514 | Datenblatt | |
| 7 | 1,50 | EN 60228; cl. 5 | 12,30 | 101,00 | 225,00 | 622150714 | Datenblatt | |
| 12 | 1,50 | EN 60228; cl. 5 | 14,80 | 173,00 | 361,00 | 622151214 | Datenblatt | |
| 3 | 2,50 | EN 60228; cl. 5 | 9,60 | 72,00 | 154,00 | 622250314 | Datenblatt | |
| 4 | 2,50 | EN 60228; cl. 5 | 10,70 | 96,00 | 212,00 | 622250414 | Datenblatt | |
| 5 | 2,50 | EN 60228; cl. 5 | 11,80 | 120,00 | 242,00 | 622250514 | Datenblatt | |
| 7 | 2,50 | EN 60228; cl. 5 | 14,50 | 168,00 | 340,00 | 622250714 | Datenblatt |
