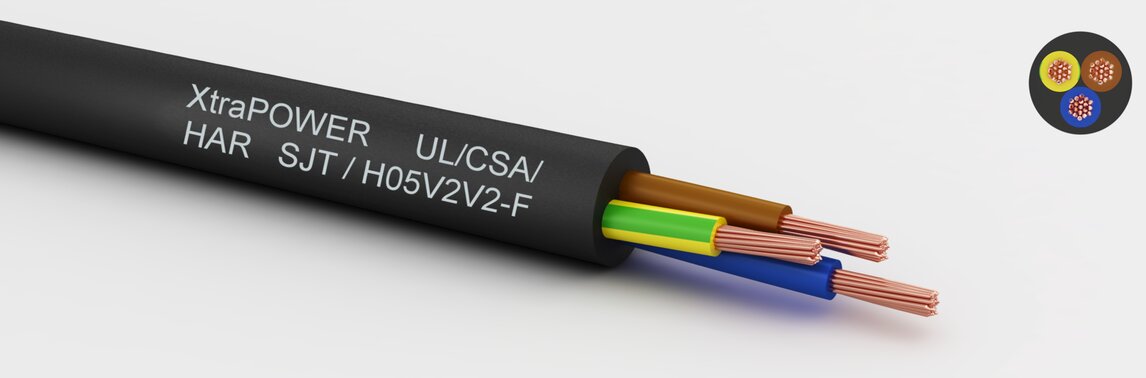

XtraPOWER UL/SJT - HAR/H05V2V2-F
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
UL-PVC 105°C / UL62 - TI3 90°C / EN50363-3
Color code cores:
colour code VDE0293 HD308
Outer sheath:
UL PVC 105°C / UL62 - TM3 90°C / EN50363-4
Jacket Colour:
optional
technical data
Wall thickness:
0,80 mm
Temperature range static:
-20 to 105 °C
static bending radius:
10,0 x outer diameter
Operating Voltage
| Norm | Uo (AC) | U (AC) | Temperature °C | Test Voltage (AC) |
|---|---|---|---|---|
| H05V2V2-F 1,00-4,00qmm | 300 | 500 | 90 | 3000 |
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| UL 62 - Typ SJT | 300 | 105 | |
| CSA 22.2 no.49 FC | 300 | 105 |
- flame retardand: IEC/EN 60332-1-2
Select visible columns
informationNo.of coresCross sectional area m²StrandingCU-IndexArticle numberdatasheet
| No.of cores | Cross sectional area m² | Stranding | CU-Index | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|
| 2 | 1,00 | 32x0,20mm / AWG 17; EN 60228 cl. 5 | 7,50 | 20,00 | 6551002 | Datenblatt | |
| 3 | 1,00 | 32x0,20mm / AWG 17; EN 60228 cl. 5 | 8,00 | 30,00 | 6551003 | Datenblatt | |
| 4 | 1,00 | 32x0,20mm / AWG 17; EN 60228 cl. 5 | 8,90 | 38,40 | 6551004 | Datenblatt | |
| 5 | 1,00 | 32x0,20mm / AWG 17; EN 60228 cl. 5 | 9,80 | 50,00 | 6551005 | Datenblatt | |
| 2 | 1,50 | 28x0,243mm / AWG 16; EN 60228 cl. 5 | 7,90 | 28,80 | 6551502 | Datenblatt | |
| 3 | 1,50 | 28x0,243mm / AWG 16; EN 60228 cl. 5 | 8,60 | 43,20 | 6551503 | Datenblatt | |
| 4 | 1,50 | 28x0,243mm / AWG 16; EN 60228 cl. 5 | 9,60 | 57,60 | 6551504 | Datenblatt | |
| 5 | 1,50 | 28x0,243mm / AWG 16; EN 60228 cl. 5 | 10,70 | 72,00 | 6551505 | Datenblatt | |
| 2 | 2,50 | 56x0,243mm / AWG 13; EN 60228 cl. 5 | 9,70 | 55,40 | 6552502 | Datenblatt | |
| 3 | 2,50 | 56x0,243mm / AWG 13; EN 60228 cl. 5 | 10,50 | 72,00 | 6552503 | Datenblatt | |
| 4 | 2,50 | 56x0,243mm / AWG 13; EN 60228 cl. 5 | 11,50 | 101,00 | 6552504 | Datenblatt | |
| 5 | 2,50 | 56x0,243mm / AWG 13; EN 60228 cl. 5 | 12,80 | 120,00 | 6552505 | Datenblatt | |
| 2 | 4,00 | 56x0,30mm / AWG 11; EN 60228 cl. 5 | 11,10 | 80,10 | 6554002 | Datenblatt | |
| 3 | 4,00 | 56x0,30mm / AWG 11; EN 60228 cl. 5 | 11,80 | 114,00 | 6554003 | Datenblatt | |
| 4 | 4,00 | 56x0,30mm / AWG 11; EN 60228 cl. 5 | 12,90 | 160,10 | 6554004 | Datenblatt | |
| 5 | 4,00 | 56x0,30mm / AWG 11; EN 60228 cl. 5 | 14,50 | 200,20 | 6554005 | Datenblatt |
