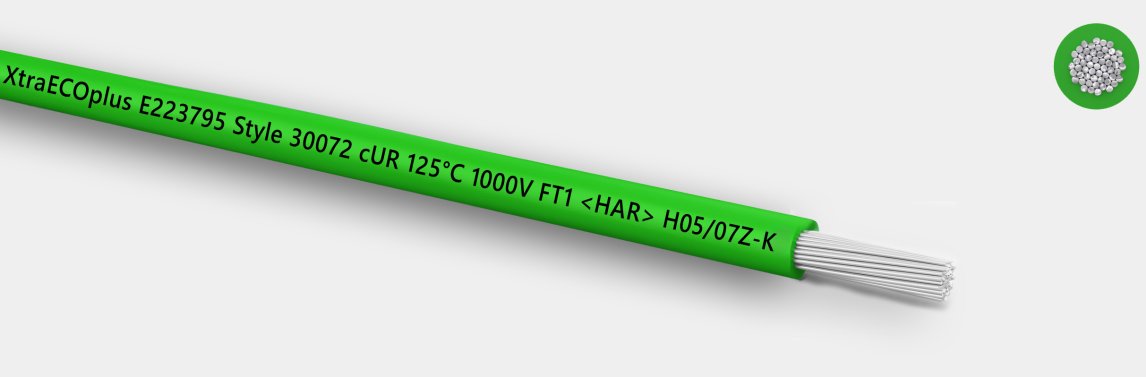

XtraECOplus HAR H05/07Z-K - UL/ cUL Style 30072 - BS 7211
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
elastomer crosslinked
Color code cores:
unicolour or bicolour with stripe
technical data
Temperature range static:
-50 to 125 °C
Temperature range moved:
-25 to 125 °C
:
100 MOhm x km bei 20°C (min. )
static bending radius:
4,0 x outer diameter
Bending radius dynamic:
10,0 x outer diameter
Operating Voltage
| Norm | Uo (AC) | U (AC) | Temperature °C | Test Voltage (AC) |
|---|---|---|---|---|
| H05Z-K 0,50-1,00mm² | 300 | 500 | 90 | 2500 |
| H07Z-K 1,50-240,0mm² | 450 | 750 | 90 |
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| AWM Style 30072 | 1000 | 125 | 3000 |
- flame retard. FT2/Horizontal Flame UL/CSA22.2-2556
- flame retardand: IEC/EN 60332-1-2
- oil resistant acc. UL 1581/480.5
- flame retard. acc. UL1581-1060 FT1, Vertical Flame
- halogen free a. IEC60754-1,IEC60754-2,IEC61034-1/2
- ozon resistance acc. to IEC EN 60811-401
- Short-circuit temp. max. 250°C at conductor(5sec.)
- temp. to +145 °C/ with redc. time of max. 3000h
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 0,50 | EN 60228; cl. 5 - AWG21 | 2,10 | 4,80 | 8,00 | 1EC050 | Datenblatt | |
| 0,75 | EN 60228; cl. 5 - AWG19 | 2,30 | 7,20 | 11,00 | 1EC075 | Datenblatt | |
| 1,00 | EN 60228; cl. 5 - AWG18 | 2,50 | 9,60 | 13,00 | 1EC100 | Datenblatt | |
| 1,50 | EN 60228; cl. 5 - AWG16 | 2,90 | 14,40 | 18,00 | 1EC150 | Datenblatt | |
| 2,50 | EN 60228; cl.5 - AWG14 | 3,60 | 24,00 | 29,00 | 1EC250 | Datenblatt | |
| 4,00 | EN 60228; class 5 - AWG12 | 4,20 | 38,40 | 43,00 | 1EC400 | Datenblatt | |
| 6,00 | EN 60228; cl.5 - AWG10 | 4,80 | 58,00 | 61,00 | 1EC600 | Datenblatt | |
| 10,00 | EN 60228; cl.5 - AWG8 | 6,10 | 96,00 | 106,00 | 1EC101 | Datenblatt |
