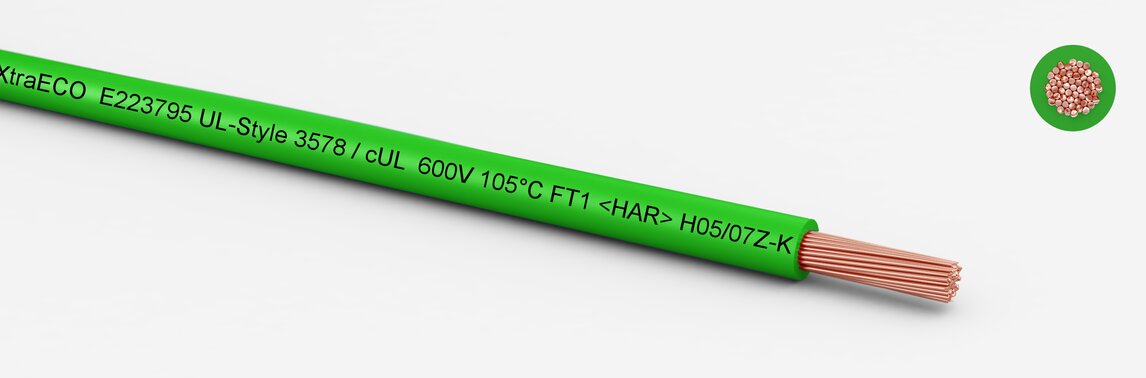

XtraECO VDE-HAR H05/07Z-K - UL/ cUL wire Style 357
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
cross-linked Polyolefin EI5/8
technical data
Temperature range static:
-40 to 105 °C
Temperature range moved:
-30 to 105 °C
Operating Voltage
| Norm | Uo (AC) | U (AC) | Temperature °C | Test Voltage (AC) |
|---|---|---|---|---|
| H05Z-K 0,50-1,00qmm | 300 | 500 | 90 | 2500 |
| H07Z-K 1,50-10,00qmm | 450 | 750 | 90 | |
| X07Z-K 16,00-25,00qmm | 450 | 750 | 90 |
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| AWM Style 3578 | 600 | 105 |
- flame retard. FT2/Horizontal Flame UL/CSA22.2-2556
- halogen free acc. EN50264EI101; IEC600092-351HF90
- low smoke density EN 61034
- no corrosive gases: IEC60754-2; EN50267-2
- toxic gases: NES02-713; NF X 70-100
- flame retardant acc. to CSA 22.2, FT2
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 0,50 | EN 60228; cl. 5 - AWG21 | 2,50 | 4,80 | 11,00 | 430050 | Datenblatt | |
| 0,75 | EN 60228; cl. 5 - AWG19 | 2,70 | 7,20 | 14,00 | 430075 | Datenblatt | |
| 1,00 | EN 60228; cl. 5 - AWG18 | 2,80 | 9,60 | 17,00 | 430100 | Datenblatt | |
| 1,50 | EN 60228; cl. 5 - AWG16 | 3,30 | 14,40 | 22,00 | 430150 | Datenblatt | |
| 2,50 | EN 60228; cl.5 - AWG14 | 3,80 | 25,00 | 33,00 | 430250 | Datenblatt | |
| 4,00 | EN 60228; class 5 - AWG12 | 4,50 | 38,00 | 52,00 | 430400 | Datenblatt | |
| 6,00 | EN 60228; cl.5 - AWG10 | 5,00 | 58,00 | 72,00 | 430600 | Datenblatt | |
| 10,00 | EN 60228; cl.5 - AWG8 | 6,60 | 96,00 | 121,00 | 430101 | Datenblatt | |
| 25,00 | EN 60228; cl.5 - AWG4 | 10,60 | 250,00 | 320,00 | 430251 | Datenblatt |
