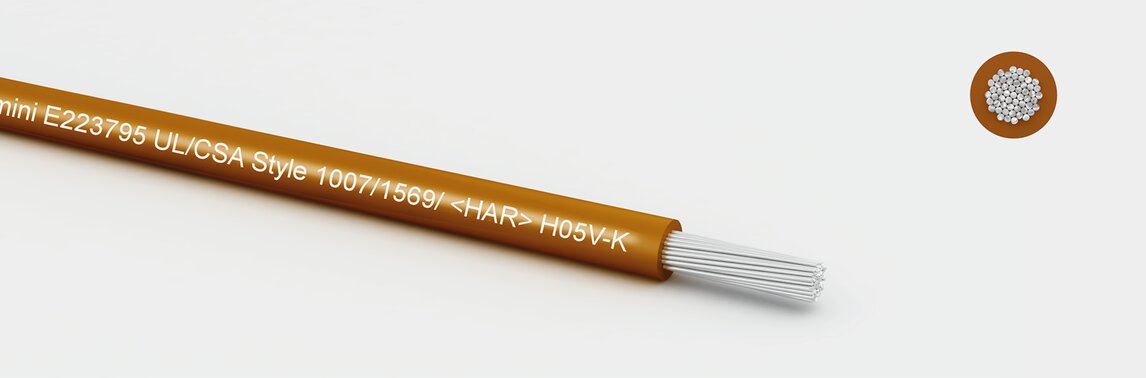

XtraBASIC-mini Style 1007/1569 UL/cUL/HAR H05V2-K
Properties
self-extinguishing
extensively resistant to oil
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
UL-PVC 105°C
technical data
Wall thickness:
0,38 mm
Temperature range static:
-40 to 105 °C
Temperature range moved:
-5 to 105 °C
static bending radius:
2,0 x outer diameter
Bending radius dynamic:
4,0 x outer diameter
Operating Voltage
| Norm | Uo (AC) | U (AC) | Temperature °C | Test Voltage (AC) |
|---|---|---|---|---|
| H05V2-K 0,50-1,00qmm | 300 | 500 | 90 | 2000 |
Operating Voltage UL
| Norm | U (r.m.s) | Temperature °C | Test Voltage |
|---|---|---|---|
| AWM Style 1007 | 300 | 80 | 1500 |
| AWM Style 1569 | 300 | 105 | 1500 |
- self-extinguishing
- flame retardand: IEC/EN 60332-1-2
- flame retardant UL1581 VW-1/UL2556 FV-2; CSA FT1
- extensively resistant to oil
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 0,50 | EN 60228; cl. 5 - AWG21 | 2,10 | 4,80 | 8,50 | 174050 | Datenblatt | |
| 0,75 | EN 60228; cl. 5 - AWG19 | 2,40 | 7,20 | 11,00 | 174075 | Datenblatt | |
| 1,00 | EN 60228; cl. 5 - AWG18 | 2,50 | 9,60 | 13,70 | 174100 | Datenblatt |
