Tubes, Woven sleeves

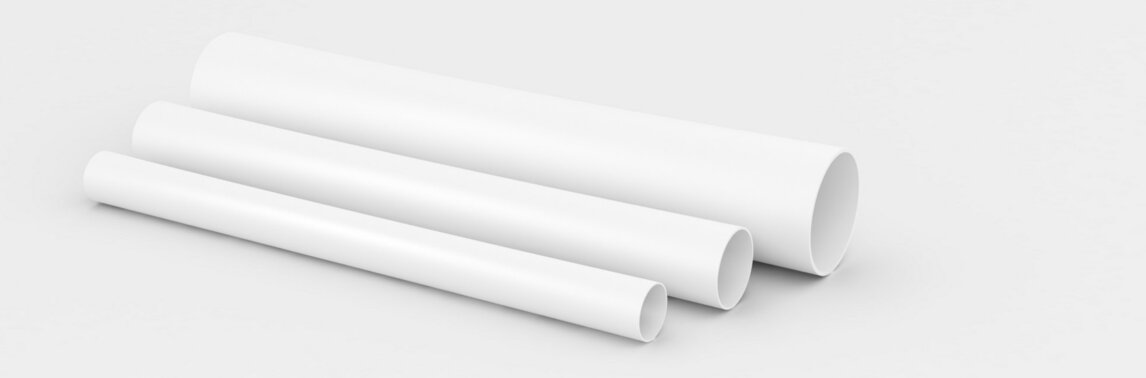

Silicone glass braided sleeves
Properties
self-extinguishing
Construction
materials:
Silicone - glass braided sleeve UL1441
Jacket Colour:
RAL 9003 signal white
technical data
Temperature range moved:
-40 to 235 °C
- self-extinguishing
- resistant against materials acc. ASTM ÖL no.2
- flame retardant acc. to UL 1441/VW-1; CSA/FT1
- resistant a. impregnating resins + coatings/UL1441
| nominal size (mm) | Packaging unit | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|
| 0,50 | 0,28 | 200 | I170528 | Datenblatt | ||
| 0,50 | 0,28 | 200 | I17052800 | Datenblatt | ||
| 1,00 | 0,38 | 200 | I17013800 | Datenblatt | ||
| 1,50 | 0,38 | 200 | I17153800 | Datenblatt | ||
| 2,00 | 0,38 | 200 | I170238 | Datenblatt | ||
| 2,00 | 0,38 | 200 | I17023800 | Datenblatt | ||
| 2,50 | 0,46 | 200 | I172546 | Datenblatt | ||
| 2,50 | 0,46 | 200 | I17254600 | Datenblatt | ||
| 3,00 | 0,46 | 200 | I17034600 | Datenblatt | ||
| 3,50 | 0,46 | 200 | I173546 | Datenblatt | ||
| 3,50 | 0,46 | 200 | I17354600 | Datenblatt | ||
| 4,00 | 0,51 | 200 | I17045100 | Datenblatt | ||
| 5,00 | 0,51 | 100 | I170551 | Datenblatt | ||
| 5,00 | 0,51 | 100 | I17055100 | Datenblatt | ||
| 6,00 | 0,51 | 100 | I17065100 | Datenblatt | ||
| 7,00 | 0,51 | 100 | I17075100 | Datenblatt | ||
| 8,00 | 0,64 | 100 | I170864 | Datenblatt | ||
| 8,00 | 0,64 | 100 | I17086400 | Datenblatt | ||
| 9,00 | 0,64 | 100 | I170964 | Datenblatt | ||
| 9,00 | 0,64 | 100 | I17096400 | Datenblatt | ||
| 10,00 | 0,64 | 100 | I171064 | Datenblatt | ||
| 10,00 | 0,64 | 100 | I17106400 | Datenblatt | ||
| 12,00 | 0,64 | 50 | I17126400 | Datenblatt | ||
| 14,00 | 0,64 | 50 | I171464 | Datenblatt | ||
| 14,00 | 0,64 | 50 | I17146400 | Datenblatt | ||
| 16,00 | 0,64 | 50 | I171664 | Datenblatt | ||
| 16,00 | 0,64 | 50 | I17166400 | Datenblatt | ||
| 18,00 | 0,64 | 50 | I171864 | Datenblatt | ||
| 18,00 | 0,64 | 50 | I17186400 | Datenblatt | ||
| 20,00 | 0,64 | 50 | I172064 | Datenblatt | ||
| 20,00 | 0,64 | 50 | I17206400 | Datenblatt | ||
| 22,00 | 0,64 | 25 | I17226400 | Datenblatt | ||
| 25,00 | 0,64 | 25 | I172564 | Datenblatt | ||
| 25,00 | 0,64 | 25 | I17256400 | Datenblatt |
Certificates
RoHS-konform
REACH konform
UL-Recognized
Kanadischer Markt UL-Recognized
Kanadischer Markt UL-Listed
