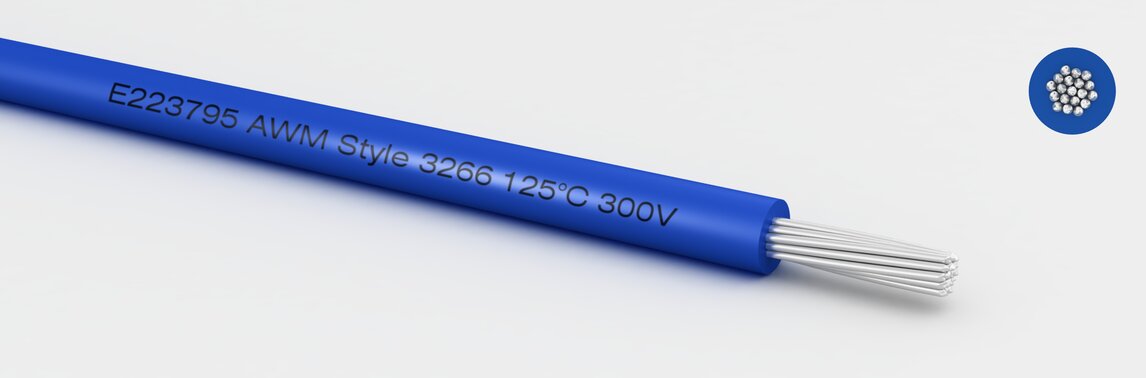

UL/cUL Style 3266
Properties
halogen-free
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
PO polyolefine halogen free
technical data
Wall thickness:
0,38 mm
Temperature range static:
-40 to 125 °C
Temperature range moved:
-30 to 125 °C
static bending radius:
8,0 x outer diameter
Bending radius dynamic:
15,0 x outer diameter
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| 300 |
- halogen-free
- flame retard. FT2/Horizontal Flame UL/CSA22.2-2556
- low smoke density EN 61034
- no corrosive gases: IEC60754-2; EN50267-2
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 24 | 7x0,200mm | 1,45 | 3,00 | 4,10 | 137247 | Datenblatt | |
| 22 | 19x0,160mm | 1,60 | 3,80 | 5,50 | 137229 | Datenblatt | |
| 12 | 65x0,254mm | 3,30 | 33,00 | 39,00 | 137126M01 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Canadian Standards Association
