Flat ribbon cables, FBL Raster 0,635 - 1,00mm
Flat ribbon cables, FBL halogenfrei

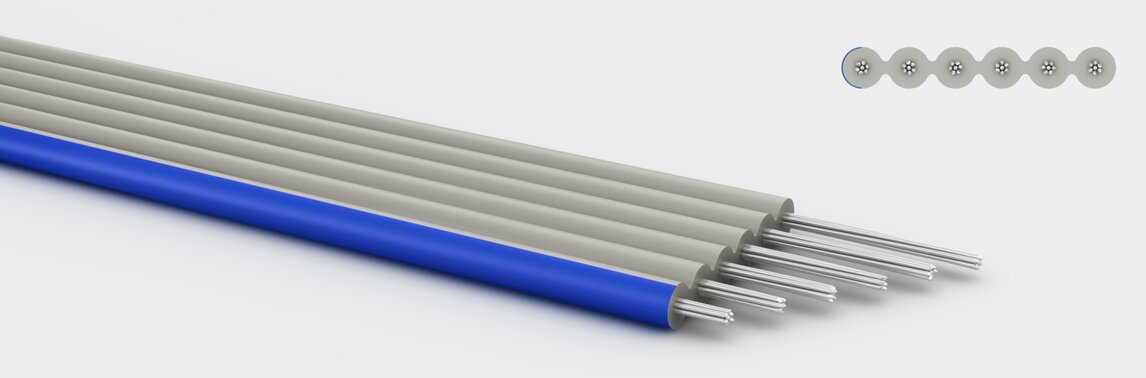

UL-Style 22092 AWG 30 Pitch 0,635 mm FBL LIH
Properties
halogen-free
Construction
Conductor:
tin plated copper acc. to EN13602
Stranding:
7x0,102mm
Core Isulation:
PO polyolefine halogen free
Color code cores:
flat cable with blue stripe
Jacket Colour:
RAL 7032 pebble grey
technical data
Conduct. cross-sect.:
AWG 30
Core diameter:
0,66 mm
:
±0,05
Temperature range static:
-40 to 105 °C
Temperature range moved:
-20 to 105 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
354,0 Ohm/km bei 20°C (max.)
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
15,0 x outer diameter
:
110 Ohm
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| gem. AWM Style 22092 | 150 | 105 | 1500 |
- halogen-free
- flame retard. FT2/Horizontal Flame UL/CSA22.2-2556
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|---|
| 10 | 0,64 | 6,36 | 6,00 | 8,90 | 530718Z0110 | Datenblatt | |
| 12 | 0,64 | 7,63 | 7,20 | 10,70 | 530718Z0112 | Datenblatt | |
| 14 | 0,64 | 8,90 | 8,40 | 12,50 | 530718Z0114 | Datenblatt | |
| 16 | 0,64 | 10,17 | 9,60 | 14,20 | 530718Z0116 | Datenblatt | |
| 20 | 0,64 | 12,71 | 12,71 | 17,80 | 530718Z0120 | Datenblatt | |
| 26 | 0,64 | 16,52 | 15,60 | 23,20 | 530718Z0126 | Datenblatt | |
| 30 | 0,64 | 19,06 | 18,00 | 26,70 | 530718Z0130 | Datenblatt | |
| 34 | 0,64 | 21,60 | 20,40 | 30,30 | 530718Z0134 | Datenblatt | |
| 36 | 0,64 | 22,87 | 21,60 | 32,10 | 530718Z0136 | Datenblatt | |
| 40 | 0,64 | 25,41 | 24,00 | 35,60 | 530718Z0140 | Datenblatt | |
| 50 | 0,64 | 31,76 | 30,00 | 44,60 | 530718Z0150 | Datenblatt | |
| 68 | 0,64 | 43,19 | 40,80 | 60,80 | 530718Z0168 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
