Flat ribbon cables, FBL Raster 1,27mm
Flat ribbon cables, FBL halogenfrei

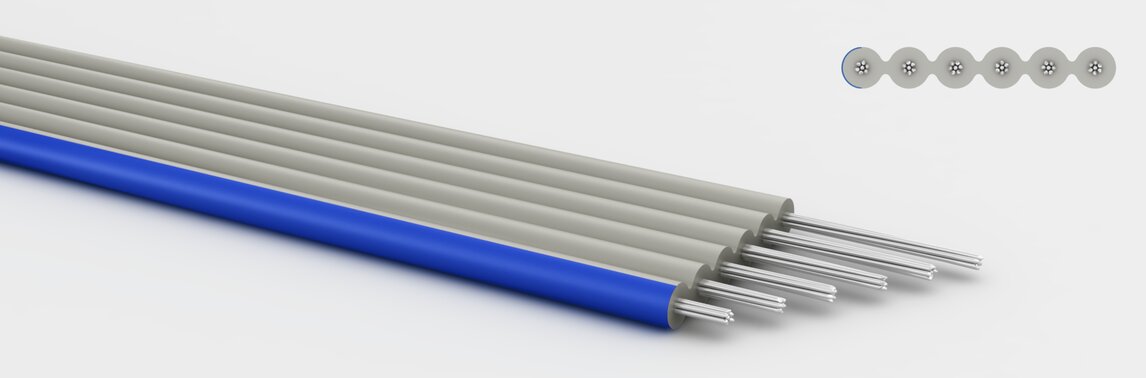

UL Style 21151 AWG 28 Pitch 1,27mm FBL LiH
Properties
halogen-free
Construction
Conductor:
tin plated copper acc. to EN13602
Stranding:
7x0,127mm
Core Isulation:
PO polyolefine halogen free
Color code cores:
flat cable with blue stripe
Jacket Colour:
RAL 7032 pebble grey
technical data
Conduct. cross-sect.:
AWG 28
Core diameter:
0,93 mm
:
±0,05
Wall thickness:
0,23 mm
Temperature range static:
-40 to 105 °C
Temperature range moved:
-20 to 105 °C
conductor resist.:
216,0 Ohm/km bei 20°C (max.)
:
110 Ohm
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| gem. AWM Style 21151 | 300 | 105 | 1500 |
- halogen-free
- flame retard. FT2/Horizontal Flame UL/CSA22.2-2556
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|---|
| 2 | 0,93 | 2,20 | 1,80 | 3,64 | 528711P0102 | Datenblatt | |
| 3 | 0,93 | 3,47 | 2,70 | 5,50 | 528711P0103 | Datenblatt | |
| 4 | 0,93 | 4,74 | 3,60 | 7,30 | 528711P0104 | Datenblatt | |
| 5 | 0,93 | 6,01 | 4,50 | 9,10 | 528711P0105 | Datenblatt | |
| 6 | 0,93 | 7,28 | 5,40 | 10,95 | 528711P0106 | Datenblatt | |
| 9 | 0,93 | 11,09 | 8,10 | 16,40 | 528711P0109 | Datenblatt | |
| 10 | 0,93 | 12,36 | 9,00 | 18,20 | 528711P0110 | Datenblatt | |
| 14 | 0,93 | 17,44 | 12,60 | 25,50 | 528711P0114 | Datenblatt | |
| 15 | 0,93 | 18,71 | 13,50 | 27,30 | 528711P0115 | Datenblatt | |
| 16 | 0,93 | 19,98 | 14,40 | 29,20 | 528711P0116 | Datenblatt | |
| 20 | 0,93 | 25,06 | 18,00 | 36,50 | 528711P0120 | Datenblatt | |
| 26 | 0,93 | 32,68 | 23,40 | 47,50 | 528711P0126 | Datenblatt | |
| 34 | 0,93 | 42,84 | 30,60 | 61,90 | 528711P0134 | Datenblatt | |
| 40 | 0,93 | 50,46 | 36,00 | 72,80 | 528711P0140 | Datenblatt | |
| 50 | 0,93 | 63,16 | 45,00 | 91,00 | 528711P0150 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
