Single wires UL/CSA, UL Litzen und Drähte mit erhöhter Wärmebeständigkeit
Single wires UL/CSA, PTFE, FEP, ETFE

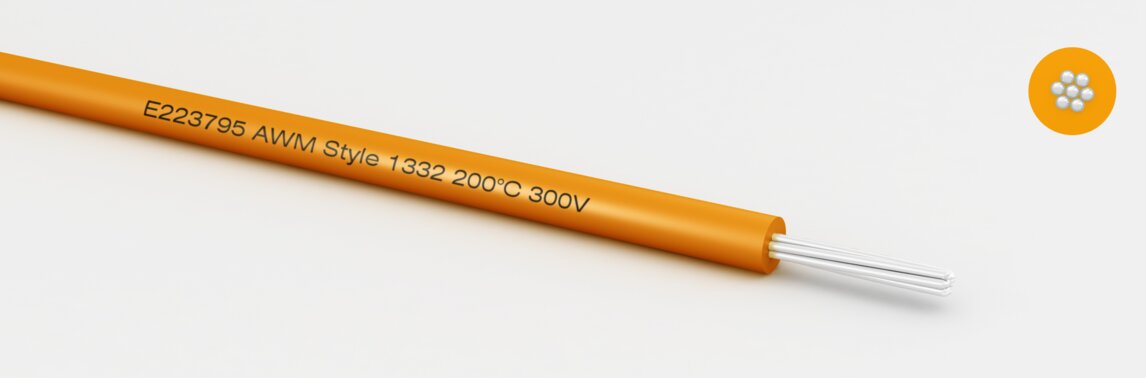

UL Style 1332 silver plated
Properties
good ozone resistance
good weather resistance
good UV resistance
resistant against acids, oils and chemicals
Construction
Conductor:
silver plated copper acc. to EN13602
Core Isulation:
FEP - 6Y
technical data
Wall thickness:
0,33 mm
Temperature range static:
0 to 200 °C
Temperature range moved:
0 to 200 °C
:
100 MOhm x km bei 20°C (min. )
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| 300 |
- good ozone resistance
- good weather resistance
- good UV resistance
- resistant against acids, oils and chemicals
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 26 | 19x0,102mm | 1,28 | 1,60 | 4,20 | 6YS3269003 | Datenblatt | |
| 24 | 19x0,127mm | 1,31 | 2,40 | 5,00 | 6YS3249003 | Datenblatt | |
| 22 | 19x0,160mm | 1,50 | 3,80 | 6,00 | 6YS3229003 | Datenblatt | |
| 20 | 19x0,203mm | 1,72 | 6,10 | 10,20 | 6YS3209003 | Datenblatt | |
| 18 | 19x0,254mm | 1,93 | 9,60 | 13,20 | 6YS3189003 | Datenblatt | |
| 16 | 19x0,30mm | 2,12 | 13,50 | 16,50 | 6YS3169003 | Datenblatt | |
| 14 | 19x0,40mm | 2,65 | 20,00 | 22,80 | 6YS3149003 | Datenblatt | |
| 12 | 19x0,511mm | 3,20 | 32,00 | 35,00 | 6YS3129003 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
