Single wires UL/CSA, UL Litzen und Drähte mit erhöhter Wärmebeständigkeit
Single wires UL/CSA, PTFE, FEP, ETFE

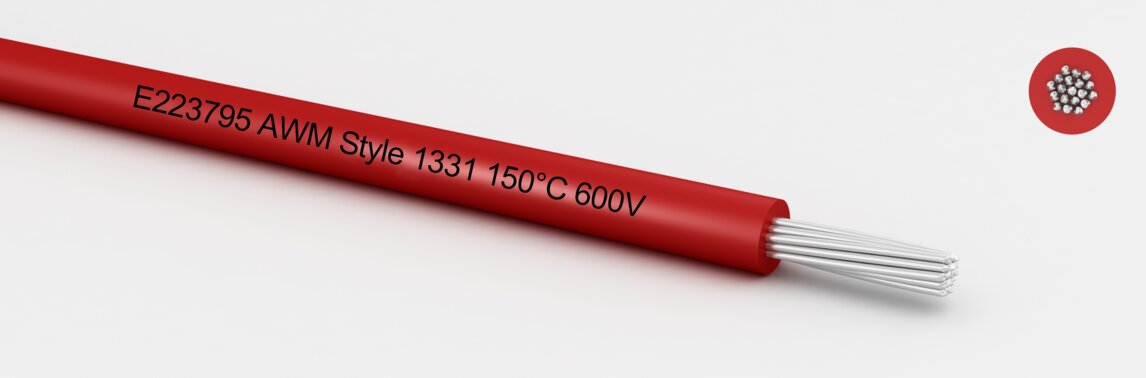

UL Style 1331 tinned
Properties
good ozone resistance
good weather resistance
good UV resistance
resistant against acids, oils and chemicals
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
FEP - 6Y
technical data
Wall thickness:
0,51 mm
Temperature range static:
0 to 150 °C
Temperature range moved:
0 to 150 °C
:
100 MOhm x km bei 20°C (min. )
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| 600 |
- good ozone resistance
- good weather resistance
- good UV resistance
- resistant against acids, oils and chemicals
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 12 | 19x0,511mm | 3,70 | 32,00 | 39,00 | 6YV6129006 | Datenblatt | |
| 14 | 19x0,40mm | 2,80 | 20,00 | 26,00 | 6YV6149006 | Datenblatt | |
| 16 | 19x0,30mm | 2,50 | 13,50 | 18,00 | 6YV6169006 | Datenblatt | |
| 18 | 19x0,254mm | 2,35 | 9,60 | 15,30 | 6YV6189006 | Datenblatt | |
| 20 | 19x0,203mm | 2,05 | 6,10 | 11,50 | 6YV6209006 | Datenblatt | |
| 22 | 19x0,160mm | 1,90 | 3,80 | 8,30 | 6YV6229006 | Datenblatt | |
| 24 | 19x0,127mm | 1,70 | 2,40 | 6,50 | 6YV6249006 | Datenblatt | |
| 26 | 7x0,160mm | 1,55 | 1,40 | 5,00 | 6YV6267006 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
