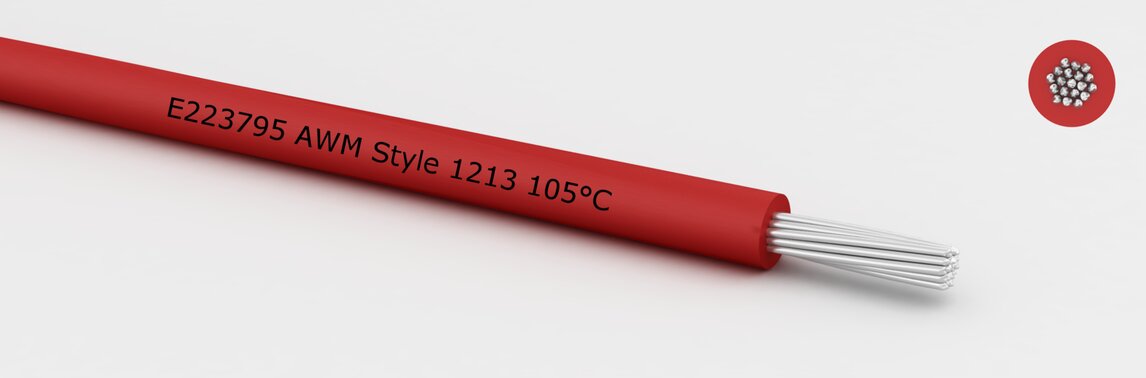

UL Style 1213 silver plated

Properties

Construction technical data Properties

Construction

Conductor:

silver plated copper acc. to EN13602

Core Isulation:

PTFE - 5Y

technical data

Wall thickness:

0,20 mm

Temperature range static:

0 to 105 °C

Temperature range moved:

0 to 105 °C

good ozone resistance
good weather resistance
good UV resistance
resistant against acids, oils and chemicals
voltage not specified

AWG	Stranding	Core ∅ (mm)	CU-Index	total weight kg/km	Article number	datasheet
16	19x0,30mm	1,89	13,50	15,00	5YSY169032	Datenblatt
18	19x0,254mm	1,66	9,60	11,00	5YSY189032	Datenblatt
20	19x0,203mm	1,43	6,10	8,00	5YSY209032	Datenblatt
22	7x0,254mm	1,24	3,40	5,00	5YSY227032	Datenblatt
24	19x0,127mm	1,05	2,40	3,50	5YSY249032	Datenblatt
26	7x0,160mm	0,95	1,40	2,60	5YSY267032	Datenblatt
28	7x0,127mm	0,85	0,90	1,00	5YSY287032	Datenblatt
