Single wires UL/CSA, UL Litzen und Drähte mit erhöhter Wärmebeständigkeit
Single wires UL/CSA, PTFE, FEP, ETFE

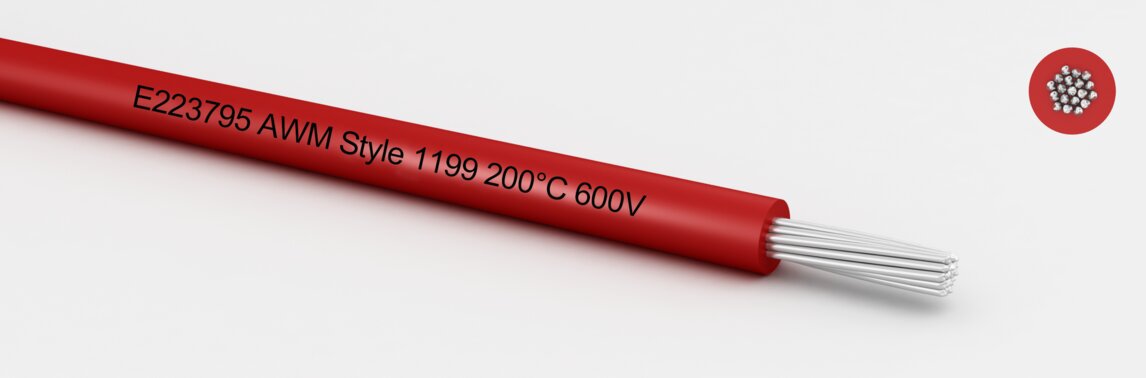

UL Style 1199 silver plated
Properties
good ozone resistance
good weather resistance
good UV resistance
resistant against acids, oils and chemicals
Construction
Conductor:
silver plated copper acc. to EN13602
Core Isulation:
PTFE - 5Y
technical data
Wall thickness:
0,51 mm
Temperature range static:
0 to 200 °C
Temperature range moved:
0 to 200 °C
:
100 MOhm x km bei 20°C (min. )
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| 600 |
- good ozone resistance
- good weather resistance
- good UV resistance
- resistant against acids, oils and chemicals
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 12 | 19x0,511mm | 3,35 | 29,51 | 39,00 | 5YS6129007 | Datenblatt | |
| 14 | 19x0,361mm | 2,80 | 20,00 | 26,00 | 5YS6159007 | ||
| 16 | 19x0,30mm | 2,43 | 13,50 | 20,00 | 5YS6169007 | Datenblatt | |
| 18 | 19x0,254mm | 2,30 | 9,60 | 15,00 | 5YS6189007 | Datenblatt | |
| 20 | 19x0,203mm | 2,05 | 6,10 | 11,00 | 5YS6209007 | Datenblatt | |
| 22 | 19x0,160mm | 1,85 | 3,80 | 9,00 | 5YS6229007 | Datenblatt | |
| 24 | 19x0,127mm | 1,75 | 2,40 | 7,00 | 5YS6249007 | Datenblatt | |
| 26 | 19x0,102mm | 1,57 | 1,60 | 3,00 | 5YS6269007 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
