Single wires UL/CSA, UL Litzen und Drähte mit erhöhter Wärmebeständigkeit
Single wires UL/CSA, PTFE, FEP, ETFE

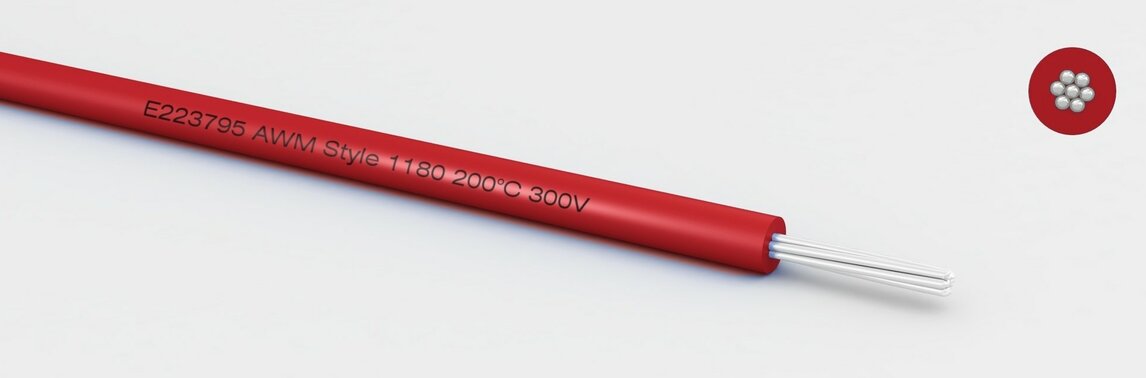

UL Style 1180 silver plated
Properties
good ozone resistance
good weather resistance
good UV resistance
resistant against acids, oils and chemicals
Construction
Conductor:
silver plated copper acc. to EN13602
Core Isulation:
PTFE - 5Y
technical data
Wall thickness:
0,33 mm
Temperature range static:
0 to 200 °C
Temperature range moved:
0 to 200 °C
:
20 MOhm x km bei 20°C (min. )
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| 300 |
- good ozone resistance
- good weather resistance
- good UV resistance
- resistant against acids, oils and chemicals
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 30 | 7x0,102mm | 1,00 | 0,60 | 2,30 | 5YS3307001 | Datenblatt | |
| 28 | 7x0,13mm | 1,10 | 0,90 | 2,60 | 5YS3287001 | Datenblatt | |
| 26 | 7x0,160mm | 1,20 | 1,40 | 3,00 | 5YS3267001 | Datenblatt | |
| 24 | 7x0,200mm | 1,34 | 2,30 | 4,00 | 5YS3247001 | Datenblatt | |
| 22 | 7x0,254mm | 1,47 | 3,50 | 6,30 | 5YS3227001 | Datenblatt | |
| 20 | 19x0,203mm | 1,67 | 6,10 | 12,00 | 5YS3209001 | Datenblatt | |
| 18 | 19x0,254mm | 1,95 | 9,60 | 13,00 | 5YS3189001 | Datenblatt | |
| 16 | 19x0,30mm | 2,20 | 13,50 | 18,86 | 5YS3169001 | Datenblatt | |
| 15 | (19/27) | 2,50 | 20,00 | 24,86 | 5YS3159001 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
