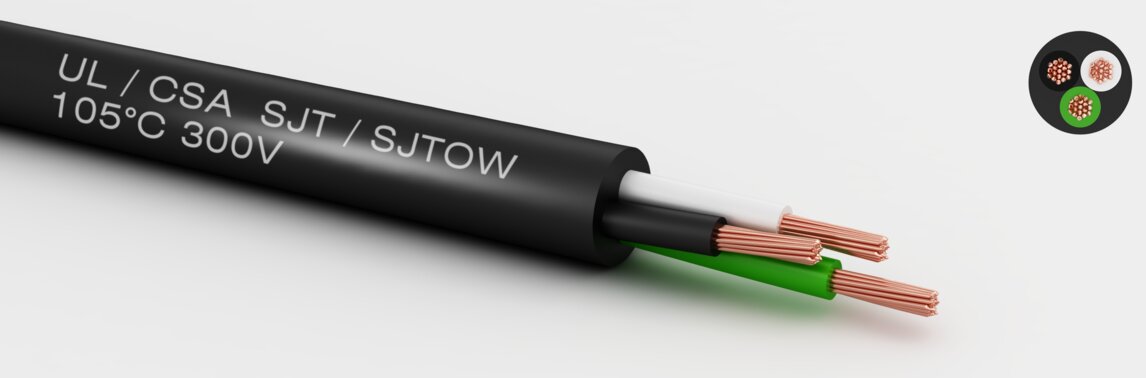

UL/cUL/CSA - SJT
Properties
good weather resistance
extensively resistant to oil
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC - polyvinyl chloride
Color code cores:
ICEA standard table 1
Outer sheath:
PVC - polyvinyl chloride
Jacket Colour:
RAL 9005 jet black
technical data
Temperature range static:
-30 to 105 °C
Temperature range moved:
-10 to 105 °C
:
20 MOhm x km bei 20°C (min. )
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| 300 |
- good weather resistance
- extensively resistant to oil
Select visible columns
informationNo.of coresAWGStrandingCU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | AWG | Stranding | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|---|
| 3 | 14 | Leiter gem. UL62 | 9,80 | 63,00 | 163,00 | 6S4140330 | Datenblatt | |
| 3 | 16 | Leiter gem. UL62 | 8,60 | 38,00 | 140,00 | 6S4160330 | Datenblatt | |
| 3 | 18 | Leiter gem. UL62 | 7,70 | 30,00 | 95,00 | 6S4180330 | Datenblatt | |
| 5 | 14 | Leiter gem. UL62 | 11,70 | 105,00 | 331,00 | 6S4140530 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Listed
