Flat ribbon cables, Flachrundleitung
Flat ribbon cables, FBL Raster 1,27mm

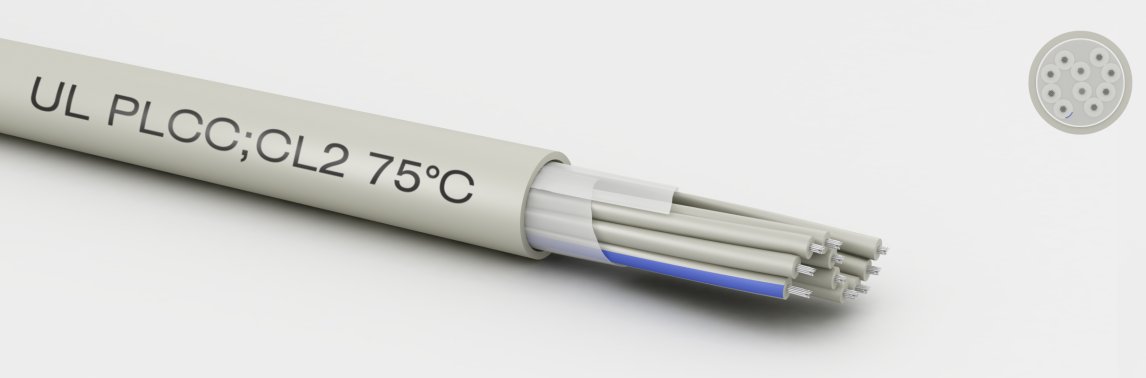

UL PLCC;CL2 AWG 28 Pitch 1,27mm unscreened
Properties
flame retardant
self-extinguishing
Construction
Conductor:
tin plated copper acc. to EN13602
Stranding:
7x0,127mm
Core Isulation:
UL-PVC 105°C
Color code cores:
flat cable with blue stripe
Outer sheath:
UL-PVC 80°C
Jacket Colour:
RAL 7032 pebble grey
technical data
Conduct. cross-sect.:
AWG 28
Core diameter:
0,93 mm
:
0,05
Wall thickness:
0,24 mm
Temperature range static:
-30 to 75 °C
Temperature range moved:
-15 to 75 °C
conductor resist.:
216,0 Ohm/km bei 20°C (max.)
Capacity:
60 pF/m
static bending radius:
10,0 x outer diameter
Bending radius dynamic:
30,0 x outer diameter
:
100 Ohm
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| gem. UL13 - PLCC;CL2 | 300 | 75 | 2000 |
- flame retardant
- self-extinguishing
- split conductor sections
- extruded jacket as hose
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 9 | 6,10 | 8,70 | 42,00 | 631280926 | Datenblatt | |
| 10 | 6,20 | 9,70 | 44,00 | 631281026 | Datenblatt | |
| 12 | 6,80 | 11,60 | 51,00 | 631281226 | Datenblatt | |
| 14 | 7,20 | 13,60 | 56,00 | 631281426 | Datenblatt | |
| 16 | 7,20 | 15,50 | 51,00 | 631281626 | Datenblatt | |
| 20 | 7,70 | 19,40 | 65,00 | 631282026 | Datenblatt | |
| 25 | 8,80 | 24,20 | 85,50 | 631282526 | Datenblatt | |
| 26 | 8,80 | 25,20 | 86,00 | 631282626 | Datenblatt | |
| 34 | 10,00 | 32,90 | 108,00 | 631283426 | Datenblatt | |
| 37 | 10,30 | 35,80 | 117,00 | 631283726 | Datenblatt | |
| 40 | 10,70 | 38,70 | 127,00 | 631284026 | Datenblatt | |
| 50 | 11,10 | 48,40 | 144,00 | 631285026 | Datenblatt | |
| 60 | 12,50 | 58,10 | 166,00 | 631286026 | Datenblatt | |
| 64 | 13,00 | 62,00 | 176,00 | 631286426 | Datenblatt |
