Single wires UL/CSA, UL Litzen und Drähte mit erhöhter Wärmebeständigkeit
Single wires UL/CSA, PTFE, FEP, ETFE

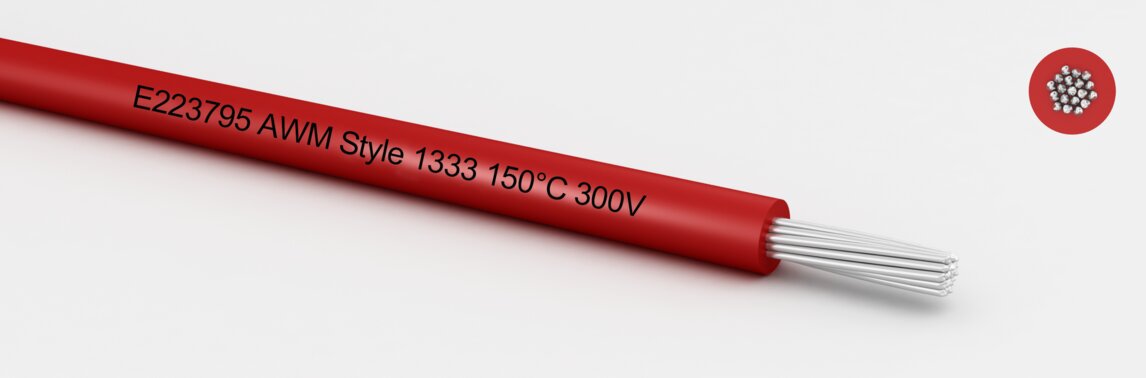

UL/cUL Style 1333 tinned
Properties
good ozone resistance
good weather resistance
good UV resistance
resistant against acids, oils and chemicals
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
FEP - 6Y
technical data
Wall thickness:
0,33 mm
Temperature range static:
0 to 150 °C
Temperature range moved:
0 to 150 °C
:
100 MOhm x km bei 20°C (min. )
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| 300 |
- good ozone resistance
- good weather resistance
- good UV resistance
- resistant against acids, oils and chemicals
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 16 | 19x0,30mm | 2,10 | 13,50 | 15,00 | 6YV3169042 | Datenblatt | |
| 18 | 19x0,254mm | 1,92 | 9,60 | 12,50 | 6YV3189042 | Datenblatt | |
| 20 | 7x0,320mm | 1,65 | 5,60 | 8,00 | 6YV3207042 | Datenblatt | |
| 22 | 7x0,250mm | 1,45 | 3,67 | 6,00 | 6YV3227042 | Datenblatt | |
| 24 | 7x0,200mm | 1,35 | 2,30 | 5,00 | 6YV3247042 | Datenblatt | |
| 26 | 7x0,160mm | 1,20 | 1,40 | 3,30 | 6YV3267042 | Datenblatt | |
| 28 | 7x0,13mm | 1,10 | 0,90 | 2,60 | 6YV3287042 | Datenblatt | |
| 30 | 7x0,102mm | 1,05 | 0,60 | 2,10 | 6YV3307042 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Kanadischer Markt UL-Recognized
Kanadischer Markt UL-Listed
