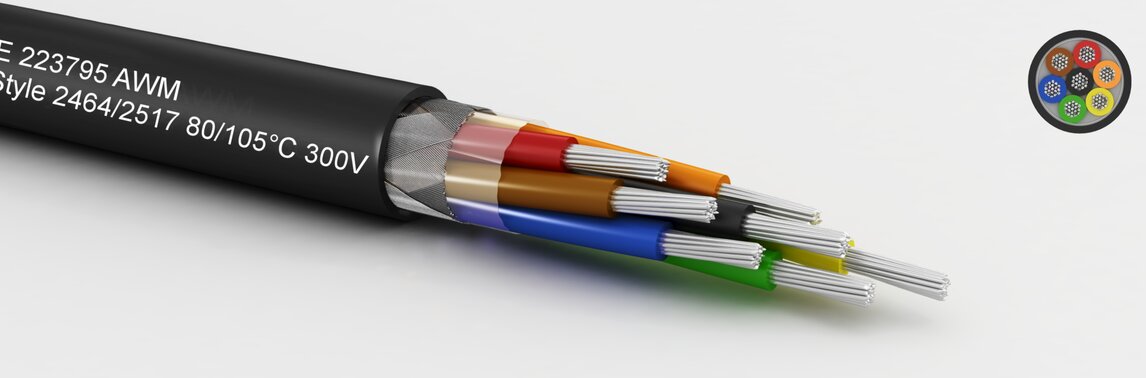

UL/cUL - LiYCY Style 2464/2517-10002 AWG22
Properties
self-extinguishing
Construction
Conductor:
tin plated copper acc. to EN13602
Stranding:
7x0,254mm
Core Isulation:
UL-PVC semi rigid 80°C
Color code cores:
optional
Outer sheath:
UL-PVC 105°C
Jacket Colour:
optional
technical data
Conduct. cross-sect.:
AWG 22
Core diameter:
1,30 mm
:
±0,10
Wall thickness:
0,23 mm
Temperature range static:
-30 to 105 °C
Temperature range moved:
-10 to 105 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
59,4 Ohm/km bei 20°C (max.)
static bending radius:
8,0 x outer diameter
Bending radius dynamic:
12,0 x outer diameter
Wall thickness:
0,76 mm
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| AWM Style 2464 | 300 | 80 | 2000 |
| AWM Style 2517 | 300 | 105 | 2000 |
- self-extinguishing
- diff. jacket and core colours codes available
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 2 | 4,80 | 20,00 | 32,00 | 7132202 | Datenblatt | |
| 3 | 4,90 | 24,10 | 36,00 | 7132203 | Datenblatt | |
| 4 | 5,30 | 25,00 | 45,00 | 7132204 | Datenblatt | |
| 6 | 6,20 | 43,60 | 61,00 | 7132206 | Datenblatt | |
| 8 | 6,70 | 49,90 | 73,00 | 7132208 | Datenblatt | |
| 10 | 7,50 | 51,40 | 93,00 | 7132210 | Datenblatt | |
| 12 | 7,80 | 63,90 | 102,00 | 7132212 | Datenblatt | |
| 14 | 8,00 | 71,50 | 115,50 | 7132214 | Datenblatt | |
| 16 | 8,60 | 81,00 | 130,90 | 7132216 | Datenblatt | |
| 18 | 8,70 | 87,80 | 195,80 | 7132218 | Datenblatt |
