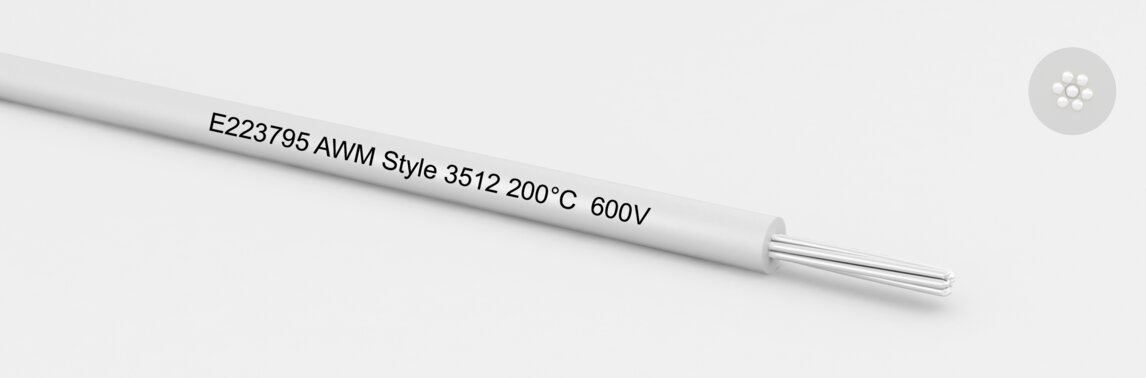

UL/CSA Style 3512
Properties
halogen-free
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
Silicone
Color code cores:
unicolour or bicolour with stripe
technical data
Wall thickness:
0,76 mm
Temperature range static:
0 to 200 °C
Temperature range moved:
0 to 200 °C
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| 600 | 150 |
- halogen-free
- flame retard. FT2/Horizontal Flame UL/CSA22.2-2556
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 0,50 | 5x0,40mm | 2,70 | 5,80 | 12,50 | 108050 | Datenblatt | |
| 0,75 | 6x0,40mm | 2,80 | 7,20 | 14,00 | 108075 | Datenblatt | |
| 1,00 | 8x0,40mm | 3,00 | 9,60 | 17,10 | 108100 | Datenblatt | |
| 1,50 | 12x0,40mm | 3,20 | 14,40 | 22,20 | 108150 | Datenblatt | |
| 2,50 | 20x0,40mm | 3,70 | 24,00 | 33,00 | 108250 | Datenblatt | |
| 4,00 | 32x0,40mm | 4,30 | 38,40 | 49,10 | 108400 | Datenblatt | |
| 6,00 | 42x0,40mm | 5,50 | 57,60 | 71,20 | 108600 | Datenblatt | |
| 10,00 | 74x0,40mm | 7,10 | 96,00 | 149,40 | 108101 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Canadian Standards Association
