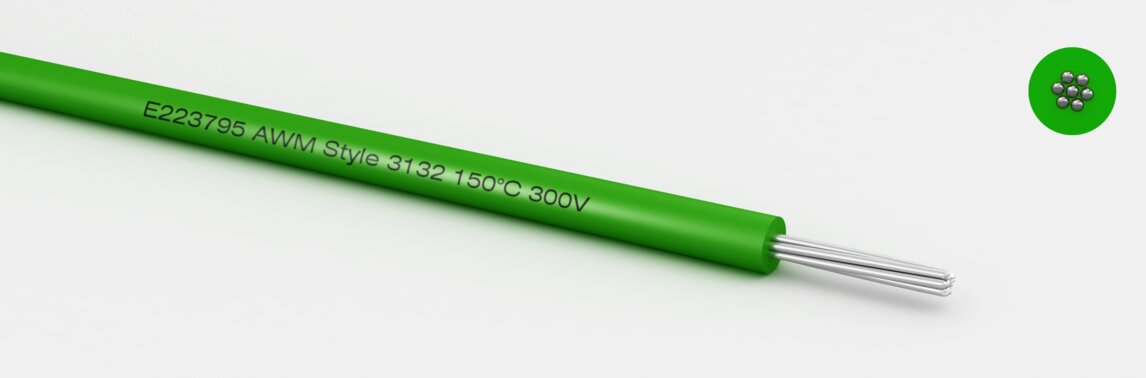

UL/CSA Style 3132
Properties
halogen-free
Construction
Core Isulation:
Silicone
Color code cores:
unicolour or bicolour with stripe
technical data
Wall thickness:
0,38 mm
Temperature range static:
0 to 150 °C
Temperature range moved:
0 to 150 °C
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| 300 | 150 |
- halogen-free
- flame retard. FT2/Horizontal Flame UL/CSA22.2-2556
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 26 | 19x0,102mm | 1,40 | 1,60 | 2,50 | 138269 | Datenblatt | |
| 24 | 7x0,203mm | 1,50 | 2,10 | 3,50 | 138247 | Datenblatt | |
| 22 | 12x0,200mm | 1,80 | 3,30 | 5,60 | 138220 | Datenblatt | |
| 20 | 17x0,20mm | 1,90 | 5,50 | 138200 | Datenblatt | ||
| 20 | 19x0,203mm | 1,80 | 6,10 | 138209 | Datenblatt | ||
| 18 | 26x0,20mm | 2,10 | 8,50 | 14,50 | 138186 | Datenblatt | |
| 16 | 42x0,20mm | 2,40 | 13,50 | 16,00 | 138160 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Canadian Standards Association
