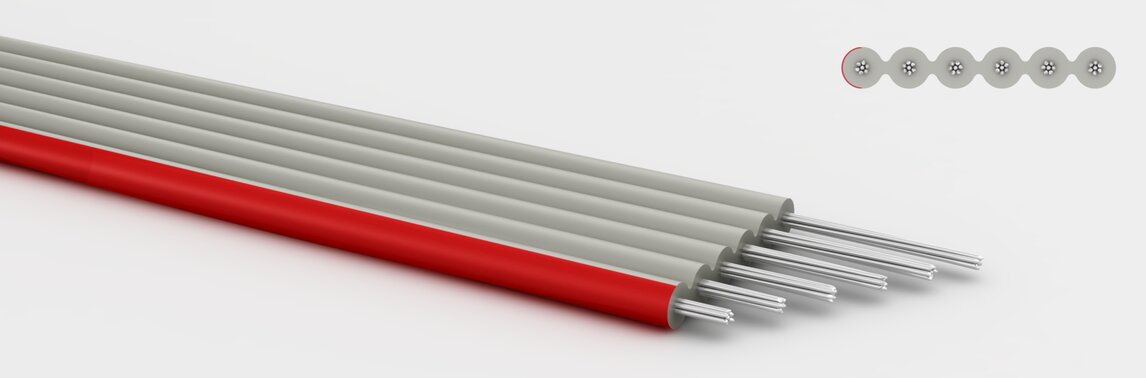

Flat ribbon cables, FBL Raster 1,27mm
UL/CSA Style 2651 AWG 26 Pitch 1,27mm FBL LIY
Properties
self-extinguishing
Construction
Conductor:
tin plated copper acc. to EN13602
Stranding:
7x0,160mm
Core Isulation:
UL-PVC 105°C
Color code cores:
flat cable with red stripe
Jacket Colour:
RAL 7032 pebble grey
technical data
Conduct. cross-sect.:
AWG 26
Core diameter:
1,00 mm
:
±0,05
Wall thickness:
0,23 mm
Temperature range static:
-30 to 105 °C
Temperature range moved:
-10 to 105 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
135,0 Ohm/km bei 20°C (max.)
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
15,0 x outer diameter
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| gem. AWM Style 2651 | 300 | 105 | 2000 |
- self-extinguishing
- expand temp. range -40°C static (acc. ISO 6722)
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|---|
| 2 | 1,00 | 2,27 | 2,80 | 4,54 | 52671102 | Datenblatt | |
| 3 | 1,00 | 3,54 | 4,20 | 6,80 | 52671103 | Datenblatt | |
| 4 | 1,00 | 4,81 | 5,60 | 8,90 | 52671104 | Datenblatt | |
| 5 | 1,00 | 6,08 | 7,00 | 13,50 | 52671105 | Datenblatt | |
| 6 | 1,00 | 7,35 | 8,40 | 13,65 | 52671106 | Datenblatt | |
| 7 | 1,00 | 8,62 | 9,80 | 15,90 | 52671107 | Datenblatt | |
| 8 | 1,00 | 9,89 | 11,20 | 18,20 | 52671108 | Datenblatt | |
| 9 | 1,00 | 11,16 | 12,60 | 20,43 | 52671109 | Datenblatt | |
| 10 | 1,00 | 12,43 | 14,00 | 22,70 | 52671110 | Datenblatt | |
| 12 | 1,00 | 14,97 | 16,80 | 27,30 | 52671112 | Datenblatt | |
| 14 | 1,00 | 17,51 | 19,60 | 31,80 | 52671114 | Datenblatt | |
| 15 | 1,00 | 18,78 | 21,00 | 34,10 | 52671115 | Datenblatt | |
| 16 | 1,00 | 20,05 | 22,40 | 36,40 | 52671116 | Datenblatt | |
| 18 | 1,00 | 22,59 | 25,20 | 40,90 | 52671118 | Datenblatt | |
| 20 | 1,00 | 25,13 | 28,00 | 45,50 | 52671120 | Datenblatt | |
| 24 | 1,00 | 30,21 | 33,60 | 54,60 | 52671124 | Datenblatt | |
| 25 | 1,00 | 31,48 | 35,00 | 56,75 | 52671125 | Datenblatt | |
| 26 | 1,00 | 32,75 | 36,40 | 59,10 | 52671126 | Datenblatt | |
| 30 | 1,00 | 37,83 | 42,00 | 68,10 | 52671130 | Datenblatt | |
| 34 | 1,00 | 42,91 | 47,60 | 77,40 | 52671134 | Datenblatt | |
| 36 | 1,00 | 45,45 | 50,40 | 81,80 | 52671136 | Datenblatt | |
| 37 | 1,00 | 46,72 | 51,80 | 84,20 | 52671137 | Datenblatt | |
| 40 | 1,00 | 50,53 | 56,00 | 91,00 | 52671140 | Datenblatt | |
| 50 | 1,00 | 63,23 | 70,00 | 113,90 | 52671150 | Datenblatt | |
| 60 | 1,00 | 75,67 | 84,00 | 136,20 | 52671160 | Datenblatt | |
| 64 | 1,00 | 81,01 | 89,60 | 145,70 | 52671164 | Datenblatt |
