Flat ribbon cables, FBL Raster 2,50 - 2,54mm

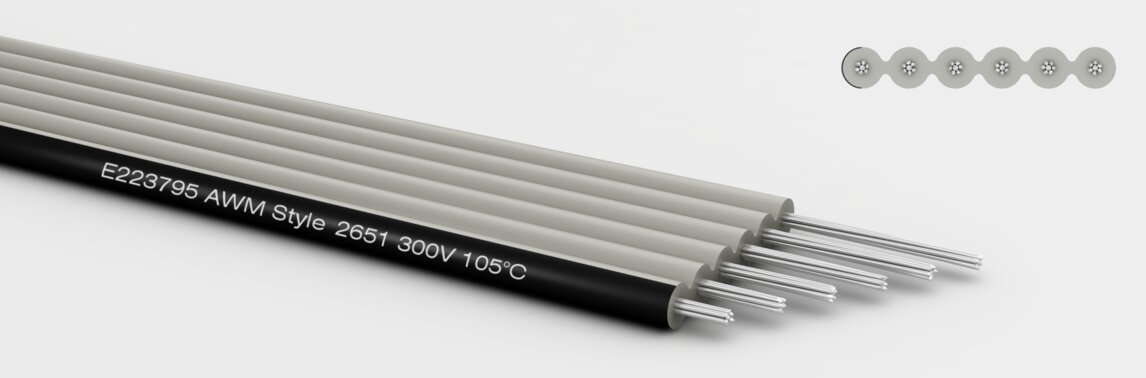

UL/CSA Style 2651 AWG 24 Pitch 2,54mm FBL LIY/ZGL
Properties
self-extinguishing
Construction
Stranding:
7x0,203mm bounded strands/ZGL
Core Isulation:
UL-PVC 105°C
Color code cores:
flat cable with black stripe
Jacket Colour:
RAL 7032 pebble grey
technical data
Conduct. cross-sect.:
AWG 24
Core diameter:
1,40 mm
:
0,10
Temperature range static:
-30 to 105 °C
Temperature range moved:
-10 to 105 °C
conductor resist.:
92,0 Ohm/km bei 20°C (max.)
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| gem. AWM Style 2651 | 300 | 105 | 2000 |
- self-extinguishing
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|---|
| 2 | 1,40 | 3,94 | 4,60 | 8,40 | 524Z0402 | Datenblatt | |
| 3 | 1,40 | 6,48 | 6,90 | 12,60 | 524Z0403 | Datenblatt | |
| 4 | 1,40 | 9,02 | 9,20 | 16,80 | 524Z0404 | Datenblatt | |
| 5 | 1,40 | 11,56 | 11,50 | 21,90 | 524Z0405 | Datenblatt | |
| 6 | 1,40 | 14,10 | 13,80 | 25,20 | 524Z0406 | Datenblatt | |
| 7 | 1,40 | 16,64 | 16,10 | 29,40 | 524Z0407 | Datenblatt | |
| 8 | 1,40 | 19,18 | 18,40 | 33,60 | 524Z0408 | Datenblatt | |
| 9 | 1,40 | 21,72 | 20,70 | 37,80 | 524Z0409 | Datenblatt | |
| 10 | 1,40 | 24,26 | 23,00 | 42,00 | 524Z0410 | Datenblatt | |
| 10 | 1,40 | 24,26 | 23,00 | 42,00 | 524Z0410B | Datenblatt | |
| 11 | 1,40 | 26,80 | 25,30 | 46,20 | 524Z0411 | Datenblatt | |
| 12 | 1,40 | 29,34 | 27,60 | 50,40 | 524Z0412 | Datenblatt | |
| 13 | 1,40 | 31,88 | 29,90 | 54,60 | 524Z0413 | Datenblatt | |
| 14 | 1,40 | 34,42 | 32,20 | 58,80 | 524Z0414 | Datenblatt | |
| 15 | 1,40 | 36,96 | 34,50 | 63,00 | 524Z0415 | Datenblatt | |
| 16 | 1,40 | 39,50 | 36,80 | 67,20 | 524Z0416 | Datenblatt | |
| 18 | 1,40 | 44,58 | 41,40 | 75,60 | 524Z0418 | Datenblatt | |
| 20 | 1,40 | 49,66 | 46,00 | 84,00 | 524Z0420 | Datenblatt | |
| 22 | 1,40 | 54,74 | 50,60 | 92,40 | 524Z0422 | Datenblatt | |
| 24 | 1,40 | 59,82 | 55,20 | 100,80 | 524Z0424 | Datenblatt | |
| 26 | 1,40 | 64,90 | 59,80 | 109,20 | 524Z0426 | Datenblatt | |
| 40 | 1,40 | 100,46 | 92,00 | 168,00 | 524Z0440 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Canadian Standards Association
