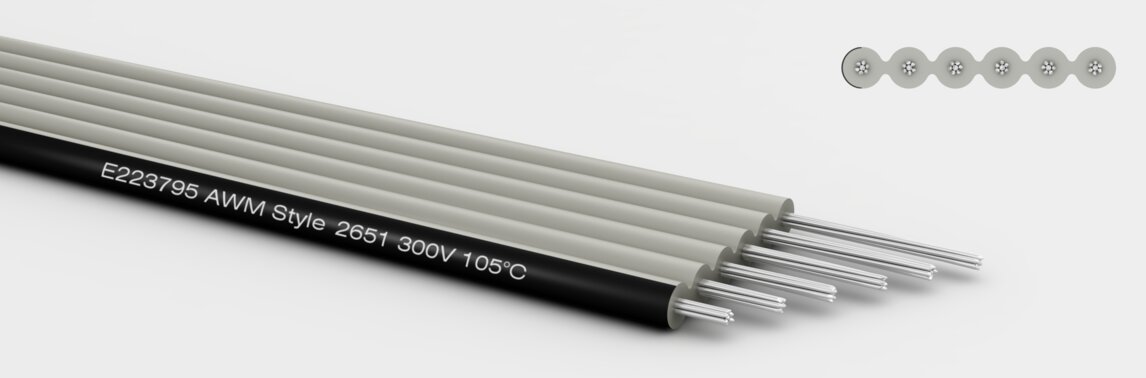

UL/CSA Style 2651 AWG 24 Pitch 2,50mm FBL LIY/ZGL

Properties

Construction

Conductor:

tin plated copper acc. to EN13602

Stranding:

7x0,203mm bounded strands/ZGL

Core Isulation:

UL-PVC 105°C

Color code cores:

flat cable with black stripe

Jacket Colour:

RAL 7032 pebble grey

technical data

Conduct. cross-sect.:

AWG 24

Core diameter:

1,35 mm

±0,05

Temperature range static:

-30 to 105 °C

Temperature range moved:

-10 to 105 °C

20 MOhm x km bei 20°C (min. )

conductor resist.:

87,0 Ohm/km bei 20°C (max.)

static bending radius:

5,0 x outer diameter

Bending radius dynamic:

25,0 x outer diameter

Operating Voltage UL

Norm	U (AC)	Temperature °C	Test Voltage
gem. AWM Style 2651	300	105	2000

No.of cores			CU-Index	total weight kg/km	Article number	datasheet
2	1,35	3,85	4,60	8,20	524Z0302	Datenblatt
3	1,35	6,35	6,90	12,50	524Z0303	Datenblatt
4	1,35	8,85	9,20	16,80	524Z0304	Datenblatt
5	1,35	11,35	11,50	21,20	524Z0305	Datenblatt
6	1,35	13,85	13,80	25,50	524Z0306	Datenblatt
7	1,35	16,35	16,10	29,90	524Z0307	Datenblatt
8	1,35	18,85	18,40	34,20	524Z0308	Datenblatt
9	1,35	21,35	20,70	38,70	524Z0309	Datenblatt
10	1,35	23,85	23,00	43,00	524Z0310	Datenblatt
11	1,35	26,35	25,30	47,30	524Z0311	Datenblatt
12	1,35	28,85	27,60	51,70	524Z0312	Datenblatt
13	1,35	31,35	27,30	55,90	524Z0313	Datenblatt
14	1,35	33,85	32,20	60,40	524Z0314	Datenblatt
15	1,35	36,35	34,50	64,50	524Z0315	Datenblatt
16	1,35	38,85	36,80	69,10	524Z0316	Datenblatt
17	1,35	41,85	39,10	73,10	524Z0317	Datenblatt
18	1,35	43,85	41,40	77,40	524Z0318	Datenblatt
19	1,35	46,35	43,70	81,70	524Z0319	Datenblatt
20	1,35	48,85	46,00	86,50	524Z0320	Datenblatt
24	1,35	58,85	55,20	103,20	524Z0324	Datenblatt
34	1,35	83,85	78,20	146,20	524Z0334	Datenblatt
40	1,35	98,85	92,00	172,00	524Z0340	Datenblatt
