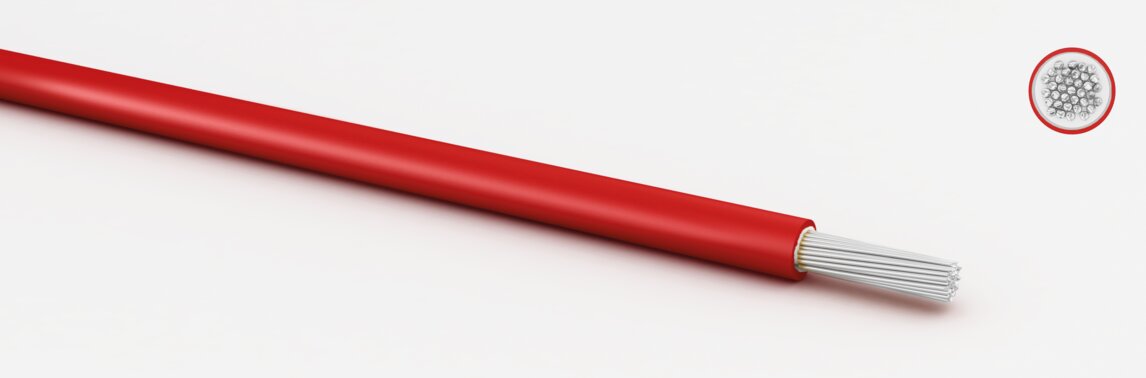

SIF/GL
Properties
heat resistant
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
Silicone - glass braided sleeve
Color code cores:
unicolour or bicolour with stripe
technical data
Temperature range static:
-50 to 180 °C
static bending radius:
10,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 500 | 2000 |
- heat resistant
- no corrosive gases: IEC60754-2; EN50267-2
- halogen free: IEC 60754-1; EN 50267-2-1
- flame retardand: IEC/EN 60332-1-2
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 0,35 | 11x0,20mm | 2,10 | 3,40 | 6,70 | 143035 | Datenblatt | |
| 0,50 | 16x0,20mm | 2,50 | 4,80 | 9,00 | 143050 | Datenblatt | |
| 0,75 | 24x0,20mm | 2,80 | 7,20 | 14,50 | 143075 | Datenblatt | |
| 1,00 | 32x0,20mm | 2,90 | 9,60 | 17,10 | 143100 | Datenblatt | |
| 1,50 | 30x0,25mm | 3,20 | 14,40 | 23,10 | 143150 | Datenblatt | |
| 2,50 | 50x0,25mm | 3,80 | 24,00 | 36,10 | 143250 | Datenblatt | |
| 4,00 | 56x0,30mm | 4,60 | 38,00 | 57,20 | 143400 | Datenblatt | |
| 6,00 | EN 60228; cl. 5 | 5,40 | 58,00 | 77,40 | 143600 | Datenblatt | |
| 10,00 | EN 60228; cl. 5 | 7,50 | 96,00 | 129,20 | 143101 | Datenblatt | |
| 16,00 | 128x0,40mm | 8,30 | 154,00 | 197,60 | 143161 | Datenblatt | |
| 25,00 | 196x0,40mm | 10,10 | 240,00 | 311,00 | 143251 | Datenblatt | |
| 35,00 | 280x0,40mm | 11,20 | 340,00 | 421,00 | 143351 | Datenblatt | |
| 50,00 | EN 60228; cl. 5 | 13,20 | 480,00 | 600,00 | 143501 | Datenblatt | |
| 70,00 | EN 60228; cl. 5 | 15,20 | 672,00 | 752,00 | 143701 | Datenblatt | |
| 95,00 | 760x0,40mm | 17,60 | 912,00 | 1007,00 | 143951 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
