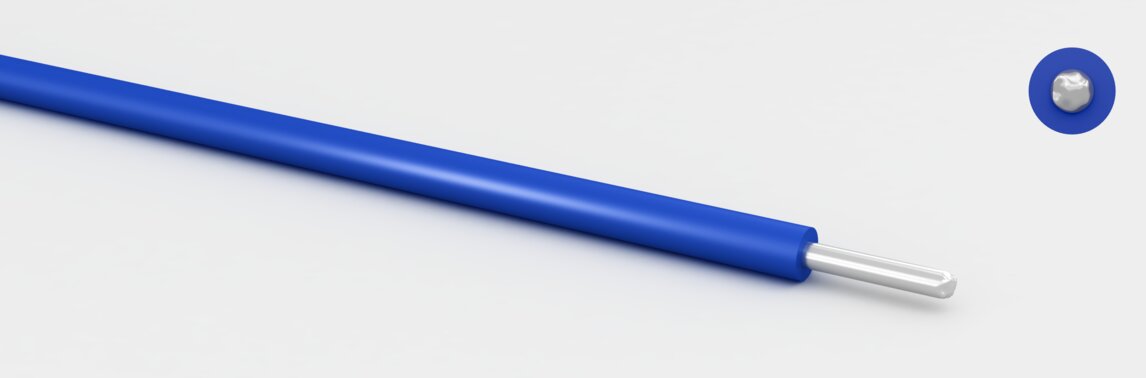

Yv based on VDE 0812

Construction technical data Properties Colours

Construction

Conductor:

tin plated copper acc. to EN13602

Core Isulation:

PVC acc. VDE 0207 / EN 50363-3

technical data

Temperature range static:

-30 to 70 °C

Temperature range moved:

-5 to 70 °C

20 MOhm x km bei 20°C (min. )

conductor resist.:

256,0 Ohm/km bei 20°C (max.)

static bending radius:

10,0 x outer diameter

Bending radius dynamic:

15,0 x outer diameter

Einfarbig

According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.

Cross sectional area m²	Stranding	Core ∅ (mm)			CU-Index	total weight kg/km	Article number	datasheet
0,07	1x0,30mm	0,70	800	350	0,70	1,20	001030	Datenblatt
0,13	1x0,40mm	0,80	1200	500	1,20	1,80	001040	Datenblatt
0,20	1x0,50mm	0,90	1200	500	1,90	2,60	001050	Datenblatt
0,20	1x0,50mm	1,10	2500	900	1,90	3,10	001051	Datenblatt
0,29	1x0,60mm	1,10	2500	900	2,90	3,70	001060	Datenblatt
0,50	1x0,80mm	1,40	2500	900	4,80	6,20	001080	Datenblatt
0,79	1x1,00mm	1,80	2500	900	7,70	10,20	001100	Datenblatt
1,54	1x1,40mm	2,20	2500	900	14,40	17,40	001140	Datenblatt
