Single wires UL/CSA, PVC
Single wires UL/CSA, PVC - irradiated

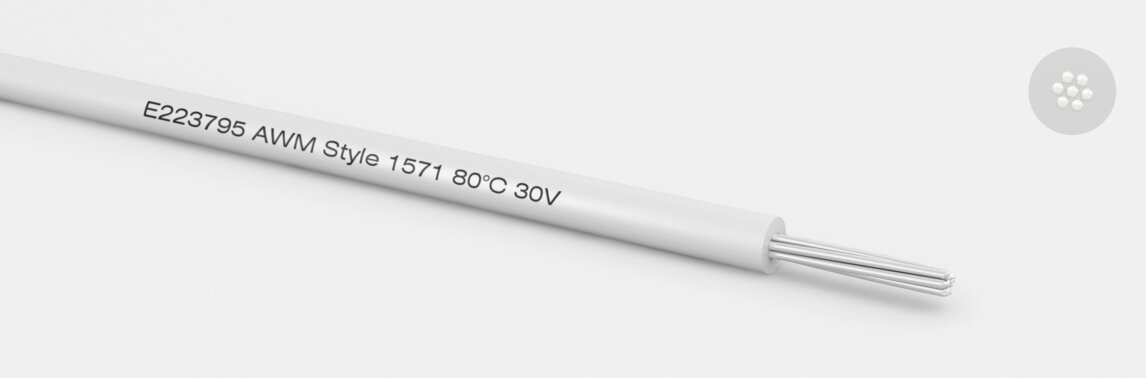

UL/ cUL Style 1571
Properties
self-extinguishing
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
Special PVC
Color code cores:
unicolour
technical data
Temperature range static:
-30 to 80 °C
Temperature range moved:
-10 to 80 °C
:
20 MOhm x km bei 20°C (min. )
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| AWM Style 1571 | 30 | 80 | 500 |
- self-extinguishing
- flame retardant UL1581 VW-1/UL2556 FV-2; CSA FT1
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 36 | 7x0,05mm | 0,45 | 0,15 | 0,60 | 132367 | Datenblatt | |
| 32 | 7x0,08mm | 0,54 | 0,40 | 0,80 | 132327 | Datenblatt | |
| 30 | 7x0,102mm | 0,70 | 0,60 | 1,00 | 132307 | Datenblatt | |
| 28 | 7x0,127mm | 0,85 | 0,90 | 1,50 | 132287 | Datenblatt | |
| 26 | 7x0,160mm | 0,90 | 1,40 | 2,80 | 132267 | Datenblatt | |
| 24 | 7x0,203mm | 1,10 | 2,10 | 4,10 | 132247 | Datenblatt | |
| 22 | 7x0,254mm | 1,30 | 3,30 | 5,80 | 132227 | Datenblatt |
Certificates
RoHS-konform
REACH konform
UL-Recognized
Kanadischer Markt UL-Recognized
Kanadischer Markt UL-Listed
