Single wires UL/CSA, PVC

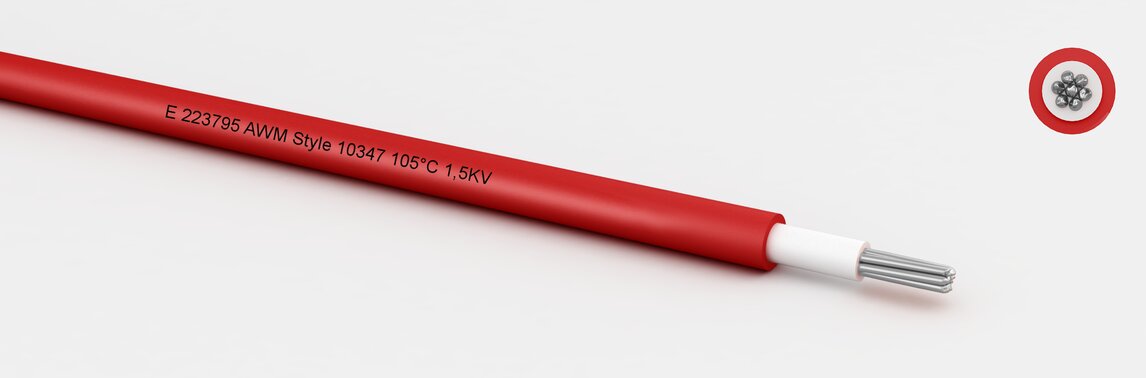

UL/cUL Style 10347 double insulation 1,5kV
Properties
self-extinguishing
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
UL-PVC 105°C
Color code cores:
nature
Outer sheath:
UL-PVC 105°C
Jacket Colour:
optional
technical data
Temperature range static:
-30 to 105 °C
Temperature range moved:
-10 to 105 °C
:
20 MOhm x km bei 20°C (min. )
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| gem. AWM Style 10347 | 1500 | 105 | 4000 |
- self-extinguishing
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
| AWG | Stranding | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|
| 28 | 7x0,127mm | 1,85 | 0,90 | 161287 | Datenblatt | ||
| 26 | 7x0,160mm | 1,90 | 1,40 | 6,00 | 161267 | Datenblatt | |
| 24 | 7x0,200mm | 2,00 | 2,10 | 7,00 | 161247 | Datenblatt | |
| 22 | 7x0,254mm | 2,20 | 3,30 | 9,00 | 161227 | Datenblatt | |
| 20 | 16x0,20mm | 2,40 | 4,80 | 11,00 | 161200 | Datenblatt | |
| 18 | 28x0,20mm | 2,80 | 8,50 | 18,00 | 161180 | Datenblatt | |
| 16 | 41x0,203mm | 3,00 | 13,50 | 21,00 | 161160 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Kanadischer Markt UL-Recognized
Kanadischer Markt UL-Listed
