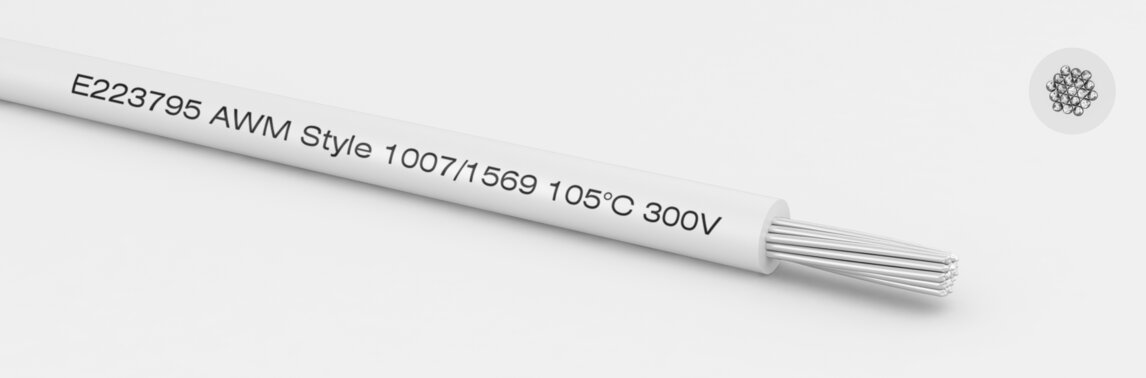

Single wires UL/CSA, PVC
UL/ cUL Style 1007/1569
Properties
self-extinguishing
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
UL-PVC 105°C
Color code cores:
unicolour or bicolour with stripe
technical data
Wall thickness:
0,38 mm
Temperature range static:
-30 to 105 °C
Temperature range moved:
-10 to 105 °C
:
20 MOhm x km bei 20°C (min. )
static bending radius:
8,0 x outer diameter
Bending radius dynamic:
12,0 x outer diameter
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| AWM Style 1007 | 300 | 80 | 2000 |
| AWM Style 1569 | 300 | 105 | 2000 |
- self-extinguishing
- flame retardant UL1581 VW-1/UL2556 FV-2; CSA FT1
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 30 | 7x0,102mm | 1,15 | 0,60 | 2,60 | 120307 | Datenblatt | |
| 28 | 7x0,127mm | 1,20 | 0,90 | 2,90 | 120287 | Datenblatt | |
| 26 | 7x0,160mm | 1,30 | 1,40 | 3,20 | 120267 | Datenblatt | |
| 24 | 7x0,20mm | 1,50 | 2,10 | 4,50 | 120247 | Datenblatt | |
| 24 | 19x0,127mm | 1,50 | 2,40 | 4,90 | 120249 | Datenblatt | |
| 22 | 7x0,254mm | 1,65 | 3,30 | 5,80 | 120227 | Datenblatt | |
| 22 | 19x0,160mm | 1,65 | 3,80 | 5,90 | 120229 | Datenblatt | |
| 20 | 18x0,203mm | 1,90 | 5,50 | 8,80 | 120200 | Datenblatt | |
| 20 | 7x0,320mm | 1,85 | 5,60 | 8,00 | 120207 | Datenblatt | |
| 18 | 28x0,20mm | 2,15 | 8,50 | 11,78 | 120180 | Datenblatt | |
| 18 | 19x0,254mm | 2,20 | 9,60 | 12,40 | 120189 | Datenblatt | |
| 16 | 41x0,203mm | 2,50 | 13,50 | 18,60 | 120160 | Datenblatt | |
| 16 | 19x0,30mm | 2,40 | 13,50 | 16,10 | 120169 | Datenblatt |
