Single wires, PVC

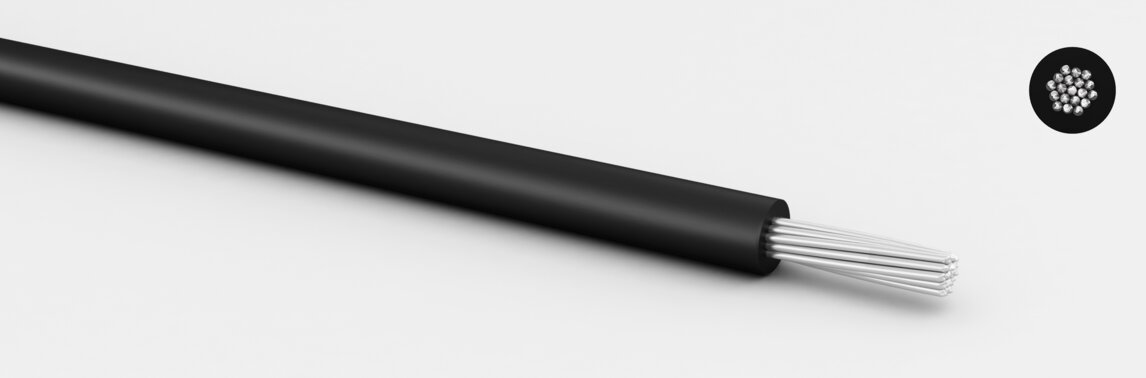

MW-C wire acc. MIL-W 76B/VDE0881
Properties
flame retardant
Resistant to acids and alkalis
self-extinguishing
Construction
Conductor:
tin plated copper acc. to EN13602
Core Isulation:
PVC
Color code cores:
unicolour or bicolour with ring marking
technical data
Temperature range static:
-55 to 80 °C
Temperature range moved:
-20 to 80 °C
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
10,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 1000 |
- flame retardant
- reistant to oil
- Resistant to acids and alkalis
- self-extinguishing
Select visible columns
informationAWGStrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| AWG | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 24 | 7x0,203mm | 1,40 | 2,10 | 4,00 | 167247 | Datenblatt | |
| 22 | 7x0,254mm | 1,60 | 3,30 | 5,60 | 167227 | Datenblatt | |
| 20 | 7x0,320mm | 1,80 | 5,60 | 8,10 | 167207 | Datenblatt | |
| 18 | 19x0,254mm | 2,10 | 9,60 | 12,30 | 167189 | Datenblatt | |
| 16 | 19x0,287mm | 2,30 | 13,50 | 16,40 | 167169 | Datenblatt | |
| 14 | 19x0,375mm | 2,60 | 20,00 | 33,00 | 167149 | Datenblatt | |
| 12 | 19x0,455mm | 3,10 | 32,00 | 167129 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
VDE
