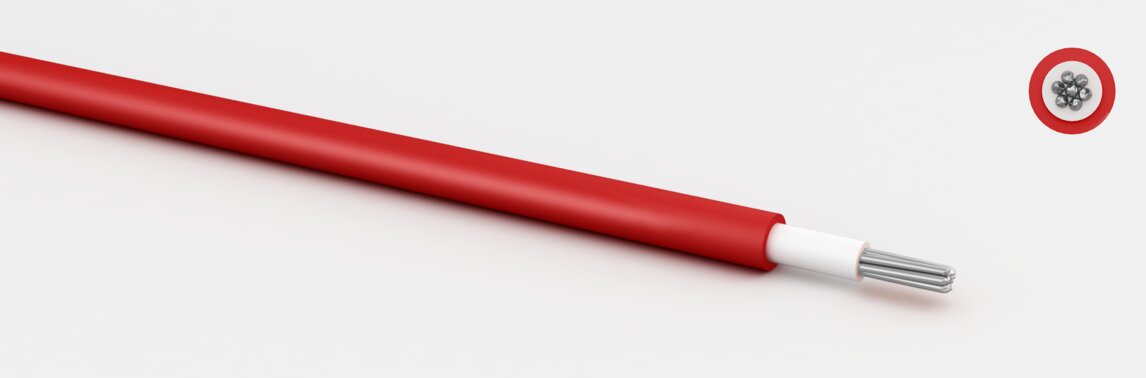

LiYY Single wire with double insolation tinned
Properties
flame retardant
self-extinguishing
Construction
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
technical data
Temperature range static:
-30 to 70 °C
Temperature range moved:
-5 to 70 °C
:
20 MOhm x km bei 20°C (min. )
static bending radius:
10,0 x outer diameter
Bending radius dynamic:
15,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 1500 | 2500 |
- flame retardant
- self-extinguishing
Einfarbig
According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 0,34 | 7x0,25mm | 1,50 | 2,40 | 2500 | 900 | 3,40 | 9,50 | 101034E01 | Datenblatt | |
| 0,50 | 16x0,20mm | 1,85 | 2,70 | 2500 | 1500 | 4,80 | 12,50 | 101050E01 | Datenblatt | |
| 1,00 | 32x0,20mm | 2,60 | 3,70 | 2500 | 1500 | 9,60 | 23,00 | 101100E01 | Datenblatt | |
| 1,50 | 30x0,25mm | 3,50 | 5,00 | 3000 | 1500 | 14,40 | 29,00 | 101150E01 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
