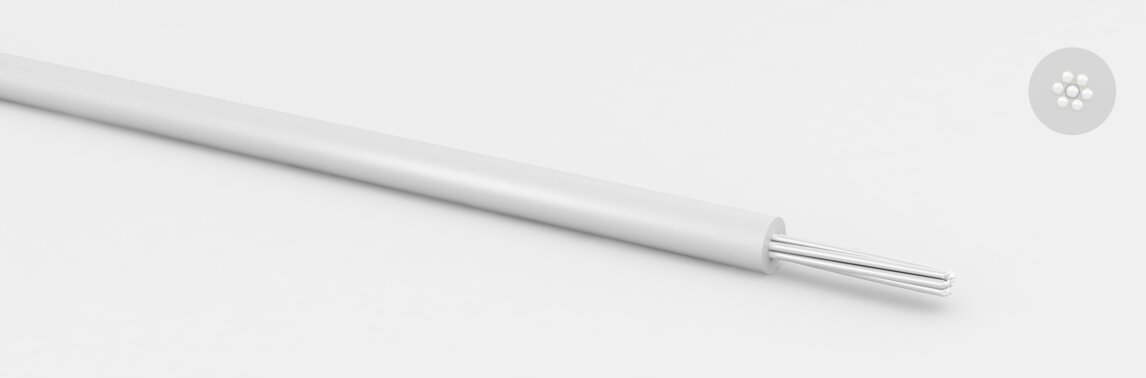

LiYv/ZGL

Properties

Construction technical data Properties Colours

Construction

Conductor:

enamelted wire

Core Isulation:

PVC acc. VDE 0207 / EN 50363-3

technical data

Temperature range static:

-30 to 70 °C

Temperature range moved:

-5 to 70 °C

20 MOhm x km bei 20°C (min. )

flame retardant
self-extinguishing

Einfarbig

According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.

Cross sectional area m²	Stranding	Core ∅ (mm)			CU-Index	total weight kg/km	Article number	datasheet
0,09	7x0,127mm	0,80	1200	450	0,80	1,00	111008	Datenblatt
0,12	7x0,15mm	0,95	1200	450	1,25	2,00	111124	Datenblatt
0,14	7x0,16mm	1,10	1200	500	1,40	2,40	111014	Datenblatt
0,22	7x0,20mm	1,30	1500	450	2,10	3,90	111022	Datenblatt
0,34	7x0,25mm	1,50	1500	450	3,40	6,00	111034	Datenblatt
0,50	7x0,30mm	1,80	2500	900	4,80	8,90	111050	Datenblatt
0,75	7x0,37mm	2,50	2500	900	7,50	11,80	111075	Datenblatt
1,00	7x0,43mm	2,20	2500	900	10,00	15,20	111100	Datenblatt
