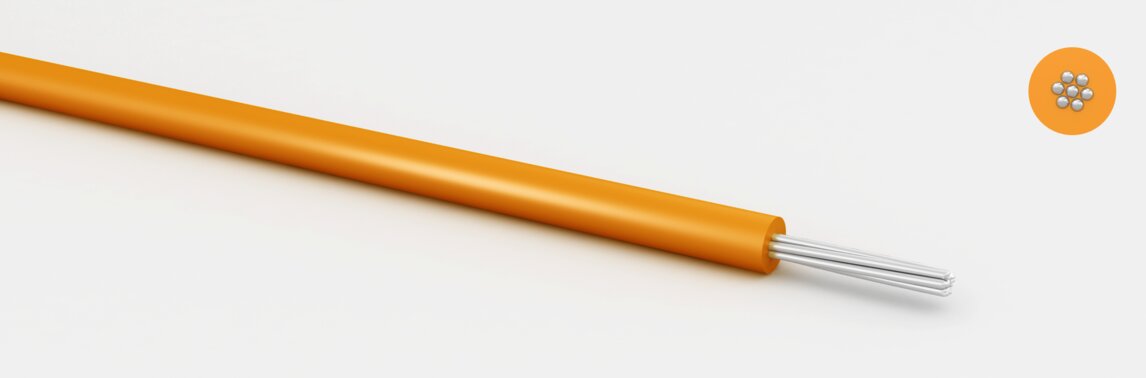

LiY-t (high temperature resistance)

Properties

Construction technical data Properties Colours

Construction

Core Isulation:

PVC acc. to DIN EN 50363-3 TI3

technical data

Temperature range static:

-40 to 105 °C

Temperature range moved:

-15 to 105 °C

20 MOhm x km bei 20°C (min. )

static bending radius:

8,0 x outer diameter

Bending radius dynamic:

12,0 x outer diameter

flame retardant
self-extinguishing

Einfarbig

According to the application of the cables, wires and single cores, the color of the core insulation has to be designed differently according to the applicable standards. An overview of possible colors and the associated color codes can be found here.

Cross sectional area m²	Stranding	Core ∅ (mm)			CU-Index	total weight kg/km	Article number	datasheet
0,05	7x0,10mm	0,70	1500	450	0,60	1,30	102005	Datenblatt
0,08	10x0,10mm	0,80	1200	300	0,80	1,60	102008	Datenblatt
0,14	18x0,10mm	1,10	1200	500	1,40	2,80	102014	Datenblatt
0,25	14x0,15mm	1,50	2500	900	2,40	5,20	102025	Datenblatt
0,38	12x0,20mm	1,80	2500	900	3,80	6,60	102038	Datenblatt
0,50	16x0,20mm	2,00	2500	900	4,80	8,90	102050	Datenblatt
0,75	24x0,20mm	2,20	2500	900	7,20	11,80	102075	Datenblatt
1,00	32x0,20mm	2,50	2500	900	9,60	15,40	102100	Datenblatt
1,50	30x0,25mm	2,90	2500	900	14,40	21,40	102150	Datenblatt
2,50	50x0,25mm	3,50	2500	900	24,00	33,70	102250	Datenblatt
