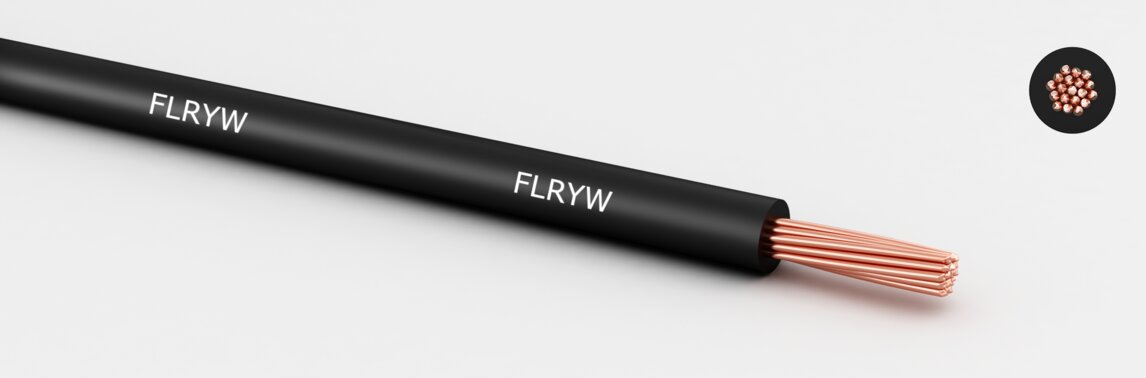

FLRYW acc. to ISO 6722
Properties
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. to ISO 6722 / ISO 19642 Class C
Color code cores:
unicolour or bicolour with stripe
technical data
Temperature range static:
-40 to 125 °C
Temperature range moved:
-40 to 125 °C
static bending radius:
10,0 x outer diameter
Bending radius dynamic:
15,0 x outer diameter
Operating Voltage
| Norm | Uo (DC) | U (DC) | Temperature °C | Test Voltage (AC) |
|---|---|---|---|---|
| FLRYw <0,50qmm | 60 | 60 | 3000 | |
| FLRYw 0,50qmm - 120qmm | 60 | 5000 |
- self-extinguishing
- resistant to oil and fuel acc. to ISO 6722/19642
- flame retardant acc. to ISO 6722/ISO 19642
- temp. to 125 °C/ with reduc. time of max. 3000h
- temperature class: C-125°C acc. to ISO 6722/19642
Select visible columns
informationCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|
| 0,35 | 7x0,25mm | 1,30 | 3,40 | 4,50 | 404035H01 | Datenblatt | |
| 0,50 | 19x0,19mm | 1,60 | 4,80 | 6,00 | 404050H01 | Datenblatt | |
| 0,75 | 24x0,20mm | 1,90 | 7,20 | 9,00 | 404075H01 | Datenblatt | |
| 1,00 | 32x0,20mm | 2,10 | 9,60 | 11,60 | 404100H01 | Datenblatt | |
| 1,50 | 30x0,25mm | 2,40 | 14,40 | 16,00 | 404150H01 | Datenblatt | |
| 2,00 | 28x0,30mm | 2,80 | 19,20 | 22,00 | 404200H01 | Datenblatt | |
| 2,50 | 50x0,25mm | 3,00 | 24,00 | 26,00 | 404250H01 | Datenblatt | |
| 3,00 | 45x0,30mm | 3,40 | 28,80 | 34,00 | 404300H01 | Datenblatt | |
| 4,00 | 56x0,30mm | 3,70 | 38,00 | 42,00 | 404400H01 | Datenblatt | |
| 6,00 | 84x0,30mm | 4,30 | 58,00 | 61,00 | 404600H01 | Datenblatt | |
| 10,00 | 80x0,40mm | 6,00 | 96,00 | 108,00 | 404101H01 | Datenblatt | |
| 16,00 | 126x0,40mm | 7,20 | 154,00 | 195,00 | 404161H01 | Datenblatt | |
| 25,00 | 196x0,40mm | 8,70 | 240,00 | 250,00 | 404251H01 | Datenblatt | |
| 35,00 | 276x0,40mm | 10,40 | 340,00 | 380,00 | 404351H01 | Datenblatt |
Certificates
RoHS-konform
REACH konform
