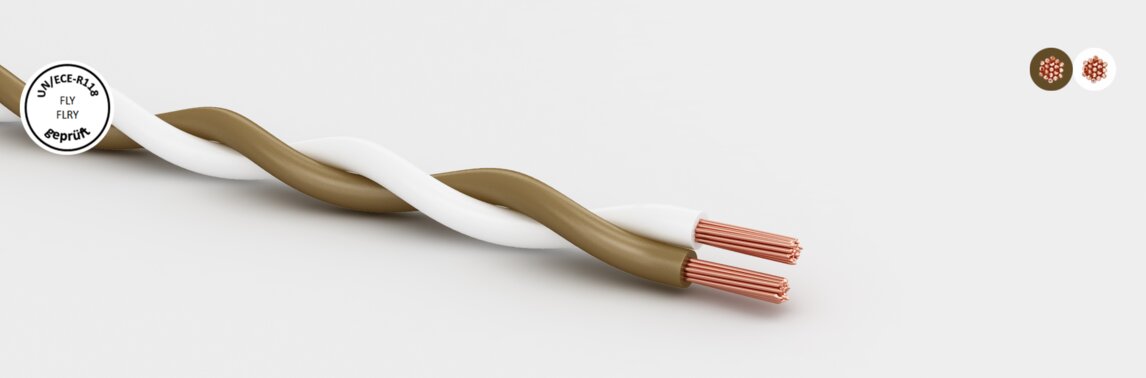

FLRY acc.ISO 6722 open stranded
Properties
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. to ISO 6722 / ISO 19642 Class B
technical data
:
0,10
Wall thickness:
0,60 mm
Temperature range static:
-40 to 105 °C
Temperature range moved:
-40 to 105 °C
:
10 MOhm x km bei 20°C (min. )
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 60 | 1000 |
- self-extinguishing
- resistant to oil and fuel acc. to ISO 6722/19642
- temperature class: B-100°C acc. to ISO 6722/19642
- flame retardant acc. to ISO 6722/ISO 19642
Select visible columns
informationNo.of coresCross sectional area m²StrandingCore ∅ (mm)CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | Stranding | Core ∅ (mm) | CU-Index | total weight kg/km | Article number | datasheet | inquiry |
|---|---|---|---|---|---|---|---|---|
| 2 | 0,35 | 7x0,25mm - Typ A | 1,40 | 7,00 | 9,60 | V2H0351 | Datenblatt | |
| 2 | 0,50 | 19x0,19mm - type A | 1,60 | 9,60 | 13,20 | V2H0501 | Datenblatt | |
| 2 | 0,75 | 24x0,20mm - type b | 1,90 | 14,40 | 17,80 | V2H0751 | Datenblatt | |
| 2 | 1,00 | 32x0,20mm - type B | 2,10 | 19,20 | 22,00 | V2H1001 | Datenblatt | |
| 3 | 0,35 | 7x0,25mm - Typ A | 1,40 | 9,90 | 13,50 | V3H0353 | Datenblatt | |
| 3 | 0,50 | 19x0,19mm - type A | 1,60 | 15,00 | 20,50 | V3H0501 | Datenblatt | |
| 3 | 0,75 | 24x0,20mm - type b | 1,90 | 21,60 | 27,00 | V3H0751 | Datenblatt | |
| 3 | 1,00 | 32x0,20mm - type B | 2,10 | 28,80 | 34,80 | V3H1003 | Datenblatt |
Certificates
RoHS-konform
REACH konform
