Multicore cables, PVC shielded

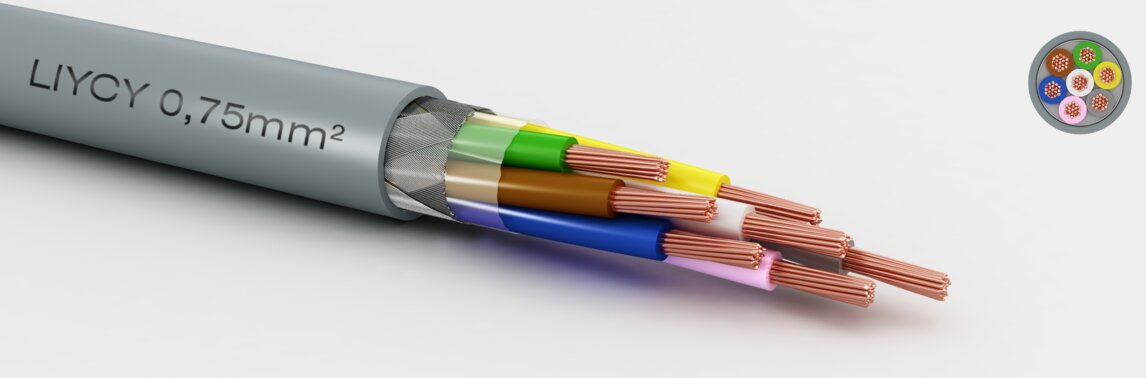

LiYCY 0,75mm²
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
24x0,20mm
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
DIN 47100
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7001 silver grey
technical data
Conduct. cross-sect.:
0,75 mm²
Core diameter:
2,00 mm
:
±0,10
Temperature range static:
-40 to 80 °C
Temperature range moved:
-5 to 70 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
26,0 Ohm/km bei 20°C (max.)
Capacity:
120 pF/m
static bending radius:
15,0 x outer diameter
Wall thickness:
0,80 mm
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 500 | 1500 |
- flame retardant
- self-extinguishing
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 1 | 3,40 | 14,60 | 24,00 | 701750111 | Datenblatt | |
| 2 | 5,80 | 38,00 | 41,94 | 701750211 | Datenblatt | |
| 3 | 6,10 | 46,00 | 66,00 | 701750311 | Datenblatt | |
| 4 | 6,60 | 52,00 | 77,00 | 701750411 | Datenblatt | |
| 5 | 7,40 | 67,00 | 93,00 | 701750511 | Datenblatt | |
| 6 | 8,20 | 70,00 | 113,00 | 701750611 | Datenblatt | |
| 7 | 8,40 | 100,00 | 156,00 | 701750711 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
