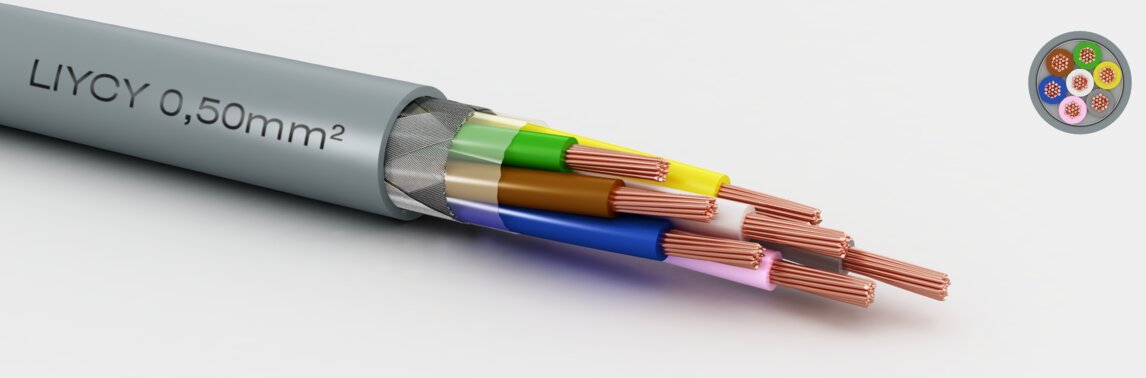

Multicore cables, PVC shielded
LiYCY 0,50mm²
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
16x0,20mm
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
DIN 47100
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7001 silver grey
technical data
Conduct. cross-sect.:
0,50 mm²
Core diameter:
1,80 mm
:
±0,10
Temperature range static:
-40 to 80 °C
Temperature range moved:
-5 to 70 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
38,0 Ohm/km bei 20°C (max.)
static bending radius:
15,0 x outer diameter
Wall thickness:
0,80 mm
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 500 | 1500 |
- flame retardant
- self-extinguishing
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 1 | 3,40 | 15,00 | 19,60 | 701500111 | Datenblatt | |
| 2 | 5,40 | 29,00 | 45,00 | 701500211 | Datenblatt | |
| 3 | 5,70 | 35,00 | 55,00 | 701500311 | Datenblatt | |
| 4 | 6,20 | 45,00 | 61,00 | 701500411 | Datenblatt | |
| 5 | 6,80 | 50,00 | 76,00 | 701500511 | Datenblatt | |
| 6 | 7,50 | 56,00 | 89,00 | 701500611 | Datenblatt | |
| 7 | 7,50 | 68,00 | 98,00 | 701500711 | Datenblatt | |
| 8 | 7,80 | 75,00 | 117,00 | 701500811 | Datenblatt | |
| 10 | 8,70 | 83,00 | 135,00 | 701501011 | Datenblatt | |
| 12 | 9,60 | 108,00 | 120,00 | 701501211 | Datenblatt | |
| 16 | 10,80 | 128,00 | 210,00 | 701501611 | Datenblatt | |
| 20 | 11,50 | 173,00 | 275,00 | 701502011 | Datenblatt | |
| 24 | 12,00 | 192,00 | 337,00 | 701502411 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
