Multicore cables, PVC shielded

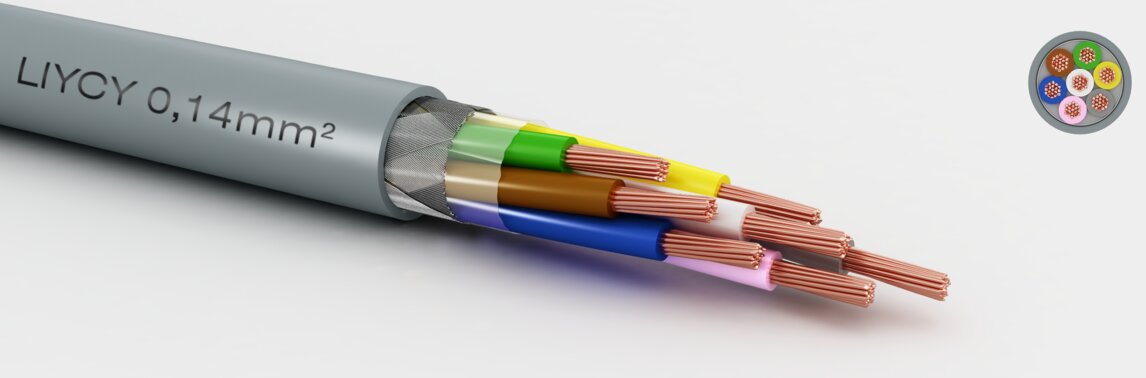

LiYCY 0,14mm²
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
18x0,10mm
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
DIN 47100
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7001 silver grey
technical data
Conduct. cross-sect.:
0,14 mm²
Core diameter:
1,05 mm
:
±0,10
Temperature range static:
-40 to 80 °C
Temperature range moved:
-5 to 70 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
148,0 Ohm/km bei 20°C (max.)
static bending radius:
15,0 x outer diameter
Wall thickness:
6,00 mm
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 350 | 1200 |
- flame retardant
- self-extinguishing
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 1 | 2,50 | 4,90 | 10,00 | 701140111 | Datenblatt | |
| 2 | 3,70 | 12,50 | 20,00 | 701140211 | Datenblatt | |
| 3 | 3,90 | 14,00 | 27,00 | 701140311 | Datenblatt | |
| 4 | 4,10 | 15,90 | 25,53 | 701140411 | Datenblatt | |
| 5 | 4,60 | 19,60 | 37,00 | 701140511 | Datenblatt | |
| 6 | 4,70 | 19,50 | 42,00 | 701140611 | Datenblatt | |
| 7 | 4,70 | 24,00 | 48,00 | 701140711 | Datenblatt | |
| 8 | 5,60 | 26,10 | 55,00 | 701140811 | Datenblatt | |
| 10 | 6,20 | 29,00 | 65,00 | 701141011 | Datenblatt | |
| 12 | 6,30 | 32,00 | 63,00 | 701141211 | Datenblatt | |
| 14 | 6,50 | 38,10 | 79,00 | 701141411 | Datenblatt | |
| 16 | 6,70 | 49,00 | 89,00 | 701141611 | Datenblatt | |
| 20 | 7,40 | 58,20 | 116,00 | 701142011 | Datenblatt | |
| 24 | 8,20 | 61,00 | 131,00 | 701142411 | Datenblatt | |
| 25 | 8,00 | 75,50 | 134,00 | 701142511 | Datenblatt | |
| 27 | 8,80 | 70,60 | 116,00 | 701142711 | Datenblatt | |
| 32 | 9,30 | 108,00 | 163,00 | 701143211 | Datenblatt | |
| 36 | 9,60 | 117,00 | 183,00 | 701143611 | Datenblatt | |
| 40 | 10,00 | 126,00 | 210,00 | 701144011 | Datenblatt | |
| 48 | 10,90 | 117,00 | 240,00 | 701144811 | Datenblatt | |
| 50 | 11,40 | 149,00 | 256,00 | 701145011 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
