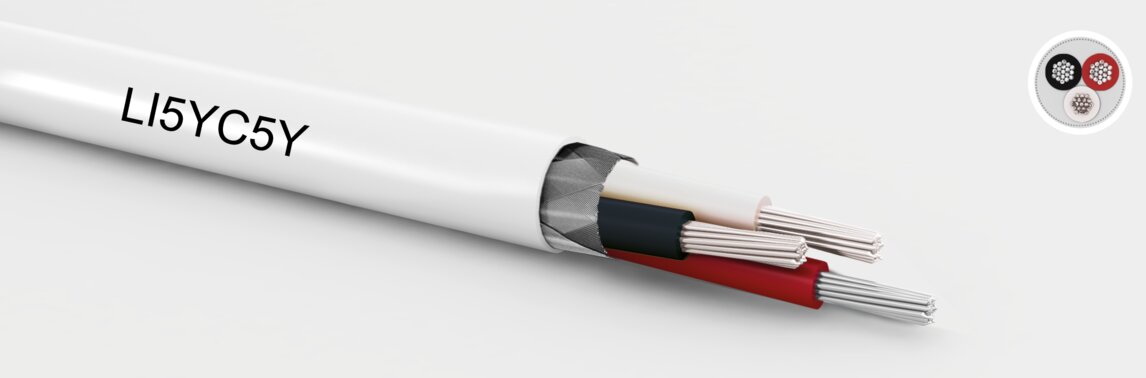

PTFE Control Cable screened
Properties
flame retardant
low smoke density
Construction
Conductor:
nickel plated copper acc. to EN13602
Core Isulation:
PTFE - 5Y
Color code cores:
1.wh, 2.rd, 3.bk, 4.bu
Outer sheath:
PTFE - 5Y
Jacket Colour:
white
technical data
Temperature range static:
-65 to 260 °C
Temperature range moved:
-65 to 260 °C
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 600 | 1000 | 3400 |
- flame retardant
- low smoke density
| No.of cores | AWG | Stranding | Core ∅ (mm) | CU-Index | Article number | datasheet | inquiry | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 20 | 19x0,203mm | 1,27 | 4,10 | 24,00 | 3400 | 76120024Q | Datenblatt | |
| 3 | 20 | 19x0,203mm | 1,27 | 4,30 | 30,89 | 3400 | 76120034Q | Datenblatt | |
| 4 | 20 | 19x0,203mm | 1,27 | 4,90 | 36,59 | 3400 | 76120044Q | Datenblatt | |
| 2 | 22 | 19x0,160mm | 1,24 | 3,70 | 19,04 | 3400 | 76122024Q | Datenblatt | |
| 3 | 22 | 19x0,160mm | 1,24 | 3,80 | 22,60 | 3400 | 76122034Q | Datenblatt | |
| 4 | 22 | 19x0,160mm | 1,24 | 4,20 | 26,75 | 3400 | 76122044Q | Datenblatt | |
| 2 | 24 | 19x0,13mm | 1,09 | 3,40 | 11,88 | 3400 | 76124024Q | Datenblatt | |
| 3 | 24 | 19x0,13mm | 1,09 | 3,50 | 14,18 | 3400 | 76124034Q | Datenblatt | |
| 4 | 24 | 19x0,13mm | 1,09 | 3,80 | 20,76 | 3400 | 76124044Q | Datenblatt | |
| 2 | 26 | 19x0,102mm | 0,96 | 3,10 | 9,28 | 3400 | 76126024Q | Datenblatt | |
| 3 | 26 | 19x0,102mm | 0,96 | 3,20 | 11,66 | 3400 | 76126034Q | Datenblatt | |
| 4 | 26 | 19x0,102mm | 0,96 | 3,50 | 13,50 | 3400 | 76126044Q | Datenblatt | |
| 2 | 28 | 7x0,13mm | 0,84 | 2,80 | 7,88 | 3400 | 76128024Q | Datenblatt | |
| 3 | 28 | 7x0,13mm | 0,84 | 3,00 | 8,68 | 3400 | 76128034Q | Datenblatt | |
| 3 | 28 | 7x0,13mm | 0,84 | 3,00 | 10,73 | 3400 | 76128044Q | Datenblatt | |
| 2 | 30 | 7x0,102mm | 0,81 | 2,60 | 7,28 | 3400 | 76130024Q | Datenblatt | |
| 3 | 30 | 7x0,102mm | 0,81 | 2,80 | 7,80 | 3400 | 76130034Q | Datenblatt | |
| 4 | 30 | 7x0,102mm | 0,81 | 3,00 | 8,39 | 3400 | 76130044Q | Datenblatt | |
| 2 | 32 | 7x0,08mm | 0,74 | 2,40 | 5,73 | 3400 | 76132024Q | Datenblatt | |
| 3 | 32 | 7x0,08mm | 0,74 | 2,60 | 7,22 | 3400 | 76132034Q | Datenblatt | |
| 4 | 32 | 7x0,08mm | 0,74 | 2,90 | 7,54 | 3400 | 76132044Q | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
