Multicore cables UL/CSA, PowerPUR - UL ungeschirmt

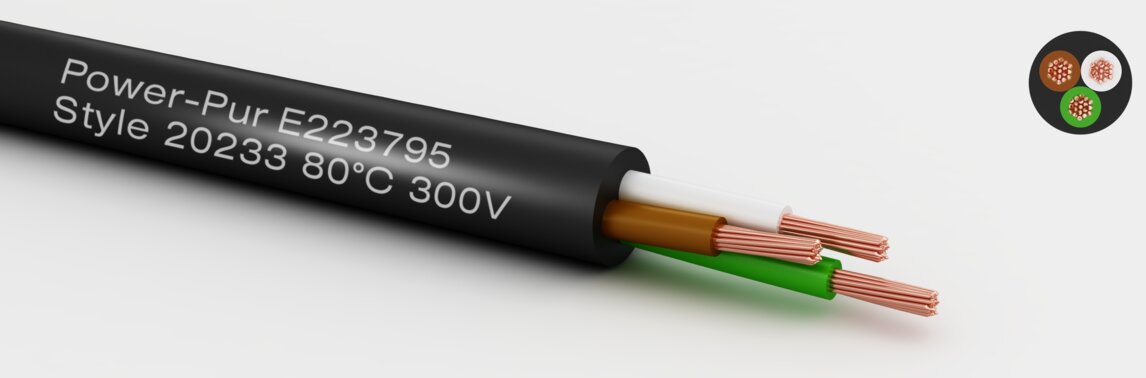

PowerPUR-UL/cUL-Style 20233/10042 AWG24
Properties
halogen-free
good weather resistance
good UV resistance
for drag chain
resistant to hydrolysis
helix capable
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
32x0,10mm
Core Isulation:
TPE 12Y - thermoplastic compound
Color code cores:
DIN 47100
Outer sheath:
UL PUR 11Y - flame retardand
Jacket Colour:
RAL 9005 jet black
technical data
Conduct. cross-sect.:
0,25 mm²
Core diameter:
1,15 mm
:
±0,05
Temperature range static:
-50 to 80 °C
Temperature range moved:
-40 to 80 °C
:
100 MOhm x km bei 20°C (min. )
conductor resist.:
78,0 Ohm/km bei 20°C (max.)
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
10,0 x outer diameter
Wall thickness:
0,76 mm
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| AWM Style 20233 | 300 | 80 | 2000 |
- halogen-free
- good weather resistance
- good UV resistance
- for drag chain
- resistant to hydrolysis
- helix capable
- flame retardant UL1581 VW-1/UL2556 FV-2; CSA FT1
- notch tough
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 2 | 3,90 | 5,00 | 15,30 | U50250231 | Datenblatt | |
| 3 | 4,20 | 7,50 | 16,60 | U50250331 | Datenblatt | |
| 4 | 4,50 | 10,00 | 19,90 | U50250431 | Datenblatt | |
| 5 | 4,70 | 12,50 | 24,30 | U50250531 | Datenblatt | |
| 6 | 5,20 | 15,00 | 28,50 | U50250631 | Datenblatt | |
| 7 | 5,40 | 17,50 | 32,40 | U50250731 | Datenblatt | |
| 8 | 5,80 | 20,00 | 36,90 | U50250831 | Datenblatt | |
| 10 | 6,40 | 25,00 | 45,70 | U50251031 | Datenblatt | |
| 12 | 6,60 | 30,00 | 52,10 | U50251231 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Kanadischer Markt UL-Recognized
Kanadischer Markt UL-Listed
