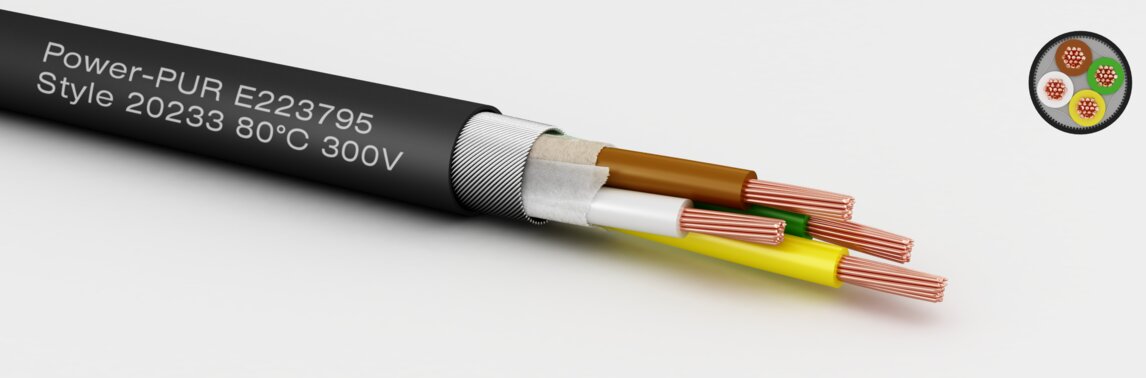

Multicore cables UL/CSA, PowerPUR - UL geschirmt
PowerPUR/D-UL/cUL-Style 20233/10042 AWG26
Properties
halogen-free
good weather resistance
good UV resistance
for drag chain
resistant to hydrolysis
helix capable
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
18x0,10mm
Core Isulation:
TPE 12Y - thermoplastic compound
Color code cores:
DIN 47100
Outer sheath:
UL PUR 11Y - flame retardand
Jacket Colour:
RAL 9005 jet black
technical data
Conduct. cross-sect.:
0,14 mm²
Core diameter:
0,95 mm
Temperature range static:
-50 to 80 °C
Temperature range moved:
-40 to 80 °C
:
100 MOhm x km bei 20°C (min. )
conductor resist.:
138,0 Ohm/km bei 20°C (max.)
Bending radius dynamic:
12,0 x outer diameter
Wall thickness:
0,76 mm
Operating Voltage UL
| Norm | U (Vac) | Temperature °C | Test Voltage |
|---|---|---|---|
| 300 |
- halogen-free
- good weather resistance
- good UV resistance
- for drag chain
- resistant to hydrolysis
- helix capable
- flame retardant UL1581 VW-1/UL2556 FV-2; CSA FT1
- notch tough
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 2 | 4,00 | 8,90 | 21,10 | G50140231 | Datenblatt | |
| 3 | 4,20 | 10,40 | 25,60 | G50140331 | Datenblatt | |
| 4 | 4,20 | 11,80 | 27,00 | G50140431 | Datenblatt | |
| 5 | 4,70 | 14,40 | 31,40 | G50140531 | Datenblatt | |
| 6 | 5,00 | 19,00 | 35,00 | G50140631 | Datenblatt | |
| 7 | 5,20 | 23,10 | 36,00 | G50140731 | Datenblatt | |
| 8 | 5,60 | 24,50 | 41,00 | G50140831 | Datenblatt | |
| 10 | 6,00 | 29,50 | 46,70 | G50141031 | Datenblatt | |
| 12 | 6,20 | 31,10 | 55,10 | G50141231 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Kanadischer Markt UL-Recognized
Kanadischer Markt UL-Listed
