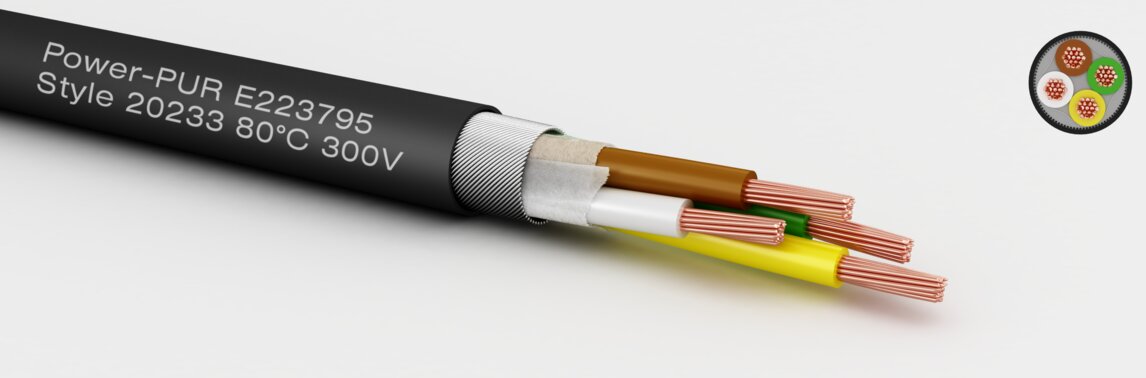

Multicore cables UL/CSA, PowerPUR - UL geschirmt
PowerPUR/D-UL/cUL-Style 20233/10042 AWG20
Properties
halogen-free
good weather resistance
good UV resistance
resistant to hydrolysis
helix capable
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
28x0,15mm
Core Isulation:
TPE 12Y - thermoplastic compound
Color code cores:
DIN 47100
Outer sheath:
UL PUR 11Y - flame retardand
Jacket Colour:
RAL 9005 jet black
technical data
Conduct. cross-sect.:
0,50 mm²
Core diameter:
1,50 mm
Temperature range static:
-50 to 80 °C
Temperature range moved:
-40 to 80 °C
:
100 MOhm x km bei 20°C (min. )
conductor resist.:
39,0 Ohm/km bei 20°C (max.)
Bending radius dynamic:
12,0 x outer diameter
Wall thickness:
0,76 mm
Operating Voltage UL
| Norm | U (AC) | Temperature °C | Test Voltage |
|---|---|---|---|
| Style 20233 AWM | 300 | 80 | 2000 |
- halogen-free
- good weather resistance
- good UV resistance
- resistant to hydrolysis
- helix capable
- flame retardant UL1581 VW-1/UL2556 FV-2; CSA FT1
- notch tough
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 2 | 4,90 | 24,30 | 33,60 | G50500231 | Datenblatt | |
| 3 | 5,15 | 29,80 | 40,10 | G50500331 | Datenblatt | |
| 4 | 5,55 | 37,50 | 49,50 | G50500431 | Datenblatt | |
| 5 | 5,95 | 43,00 | 56,40 | G50500531 | Datenblatt | |
| 6 | 6,50 | 51,90 | 71,20 | G50500631 | Datenblatt | |
| 7 | 6,85 | 49,00 | 78,60 | G50500731 | Datenblatt | |
| 8 | 7,45 | 72,00 | 95,20 | G50500831 | Datenblatt | |
| 10 | 7,75 | 96,00 | 123,40 | G50501031 | Datenblatt | |
| 12 | 8,30 | 120,00 | 151,60 | G50501231 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
UL-Recognized
Kanadischer Markt UL-Recognized
Kanadischer Markt UL-Listed
