Multicore cables, PVC - ungeschirmt

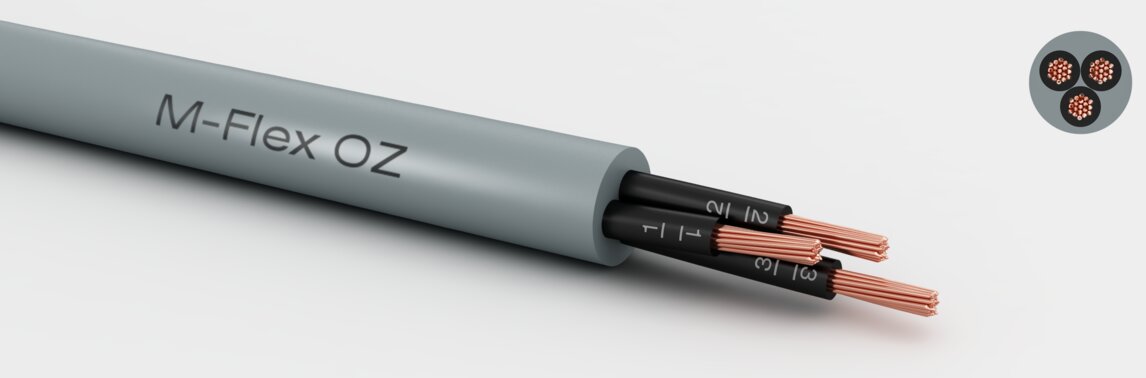

M-Flex-OZ
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
black cores with numbers (OZ)
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7001 silver grey
technical data
Temperature range static:
-30 to 70 °C
Temperature range moved:
-15 to 70 °C
:
20 MOhm x km bei 20°C (min. )
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
15,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 500 | 4000 |
- flame retardant
- self-extinguishing
Select visible columns
informationNo.of coresCross sectional area m²CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|
| 2 | 0,50 | 4,80 | 10,00 | 40,00 | 610500215 | Datenblatt | |
| 3 | 0,50 | 5,10 | 14,40 | 46,00 | 610500315 | Datenblatt | |
| 4 | 0,50 | 5,70 | 19,20 | 49,41 | 610500415 | Datenblatt | |
| 5 | 0,50 | 6,20 | 24,00 | 65,00 | 610500515 | Datenblatt | |
| 7 | 0,50 | 7,00 | 34,00 | 80,00 | 610500715 | Datenblatt | |
| 2 | 0,75 | 5,20 | 14,40 | 41,54 | 610750215 | Datenblatt | |
| 3 | 0,75 | 5,80 | 21,60 | 54,00 | 610750315 | Datenblatt | |
| 4 | 0,75 | 6,20 | 29,00 | 66,00 | 610750415 | Datenblatt | |
| 5 | 0,75 | 6,80 | 36,00 | 80,00 | 610750515 | Datenblatt | |
| 7 | 0,75 | 8,10 | 50,40 | 110,00 | 610750715 | Datenblatt | |
| 2 | 1,00 | 5,80 | 19,60 | 49,15 | 610100215 | Datenblatt | |
| 3 | 1,00 | 6,00 | 29,00 | 72,00 | 610100315 | Datenblatt | |
| 4 | 1,00 | 6,60 | 38,40 | 76,36 | 610100415 | Datenblatt | |
| 5 | 1,00 | 7,20 | 48,00 | 104,00 | 610100515 | Datenblatt | |
| 7 | 1,00 | 8,60 | 67,20 | 141,00 | 610100715 | Datenblatt | |
| 2 | 1,50 | 6,30 | 29,00 | 70,00 | 610150215 | Datenblatt | |
| 3 | 1,50 | 6,70 | 43,00 | 90,00 | 610150315 | Datenblatt | |
| 4 | 1,50 | 7,30 | 60,00 | 109,00 | 610150415 | Datenblatt | |
| 5 | 1,50 | 8,20 | 72,00 | 131,00 | 610150515 | Datenblatt | |
| 7 | 1,50 | 9,80 | 101,00 | 184,00 | 610150715 | Datenblatt | |
| 2 | 2,50 | 7,60 | 48,00 | 91,20 | 610250215 | Datenblatt | |
| 3 | 2,50 | 8,30 | 72,00 | 148,00 | 610250315 | Datenblatt | |
| 4 | 2,50 | 9,10 | 96,00 | 178,00 | 610250415 | Datenblatt | |
| 5 | 2,50 | 10,20 | 120,00 | 221,00 | 610250515 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
