Multicore cables, PVC - ungeschirmt

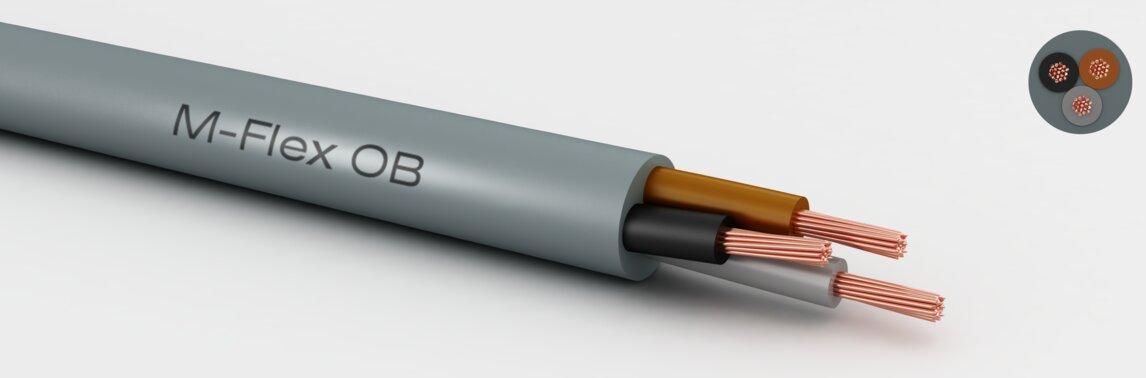

M-Flex-OB
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
VDE0293 HD308 without ye/gn (OB)
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7001 silver grey
technical data
Temperature range static:
-30 to 70 °C
Temperature range moved:
-15 to 70 °C
:
20 MOhm x km bei 20°C (min. )
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
15,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 500 | 4000 |
- flame retardant
- self-extinguishing
Select visible columns
informationNo.of coresCross sectional area m²CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|
| 3 | 0,50 | 5,10 | 14,40 | 46,00 | 610500313 | Datenblatt | |
| 3 | 0,75 | 5,50 | 21,60 | 54,00 | 610750313 | Datenblatt | |
| 2 | 1,00 | 5,50 | 19,20 | 60,00 | 610100212 | Datenblatt | |
| 3 | 1,00 | 6,00 | 29,00 | 72,00 | 610100313 | Datenblatt | |
| 3 | 1,50 | 6,70 | 43,20 | 90,00 | 610150313 | Datenblatt | |
| 3 | 2,50 | 8,30 | 72,00 | 148,00 | 610250313 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
