Multicore cables, PVC - ungeschirmt
Multicore cables, Control cables

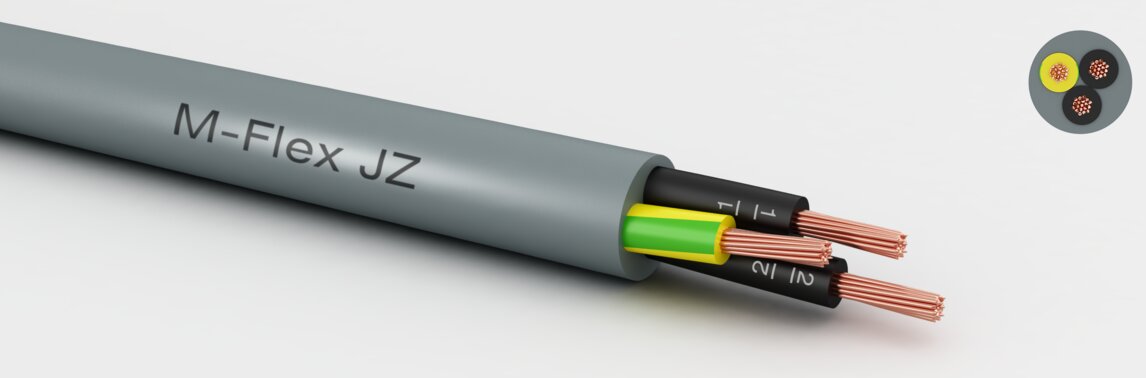

M-Flex-JZ
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
bk cores with numbers and ye/gn (JZ)
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7001 silver grey
technical data
Temperature range static:
-30 to 70 °C
Temperature range moved:
-15 to 70 °C
:
20 MOhm x km bei 20°C (min. )
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
15,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 500 | 4000 |
- flame retardant
- self-extinguishing
Select visible columns
informationNo.of coresCross sectional area m²CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|
| 3 | 0,50 | 5,10 | 14,40 | 46,00 | 610500314 | Datenblatt | |
| 4 | 0,50 | 5,70 | 19,20 | 51,00 | 610500414 | Datenblatt | |
| 5 | 0,50 | 6,20 | 24,00 | 58,57 | 610500514 | Datenblatt | |
| 7 | 0,50 | 6,70 | 34,00 | 82,00 | 610500714 | Datenblatt | |
| 12 | 0,50 | 9,10 | 58,00 | 135,00 | 610501214 | Datenblatt | |
| 18 | 0,50 | 10,50 | 86,40 | 196,00 | 610501814 | Datenblatt | |
| 21 | 0,50 | 12,20 | 101,00 | 230,00 | 610502114 | Datenblatt | |
| 25 | 0,50 | 13,00 | 120,00 | 270,00 | 610502514 | Datenblatt | |
| 30 | 0,50 | 13,50 | 144,00 | 310,00 | 610503014 | Datenblatt | |
| 40 | 0,50 | 15,80 | 192,00 | 435,00 | 610504014 | Datenblatt | |
| 3 | 0,75 | 5,50 | 21,60 | 54,00 | 610750314 | Datenblatt | |
| 4 | 0,75 | 6,20 | 29,00 | 66,00 | 610750414 | Datenblatt | |
| 5 | 0,75 | 6,80 | 36,00 | 80,00 | 610750514 | Datenblatt | |
| 7 | 0,75 | 7,50 | 51,00 | 99,00 | 610750714 | Datenblatt | |
| 12 | 0,75 | 9,90 | 86,40 | 179,00 | 610751214 | Datenblatt | |
| 18 | 0,75 | 11,90 | 130,00 | 257,00 | 610751814 | Datenblatt | |
| 21 | 0,75 | 13,30 | 151,20 | 320,00 | 610752114 | Datenblatt | |
| 25 | 0,75 | 14,50 | 180,00 | 365,00 | 610752514 | Datenblatt | |
| 3 | 1,00 | 6,00 | 29,00 | 60,75 | 610100314 | Datenblatt | |
| 4 | 1,00 | 6,60 | 38,40 | 86,00 | 610100414 | Datenblatt | |
| 5 | 1,00 | 7,20 | 48,00 | 104,00 | 610100514 | Datenblatt | |
| 7 | 1,00 | 8,30 | 67,20 | 141,00 | 610100714 | Datenblatt | |
| 18 | 1,00 | 12,70 | 173,00 | 316,00 | 610101814 | Datenblatt | |
| 3 | 1,50 | 6,70 | 43,20 | 77,14 | 610150314 | Datenblatt | |
| 4 | 1,50 | 7,30 | 58,00 | 109,00 | 610150414 | Datenblatt | |
| 5 | 1,50 | 8,20 | 72,00 | 126,00 | 610150514 | Datenblatt | |
| 7 | 1,50 | 9,10 | 101,00 | 184,00 | 610150714 | Datenblatt | |
| 12 | 1,50 | 12,10 | 173,00 | 309,00 | 610151214 | Datenblatt | |
| 3 | 2,50 | 8,30 | 72,00 | 148,00 | 610250314 | Datenblatt | |
| 4 | 2,50 | 9,10 | 96,00 | 178,00 | 610250414 | Datenblatt | |
| 5 | 2,50 | 10,20 | 120,00 | 221,00 | 610250514 | Datenblatt | |
| 7 | 2,50 | 12,10 | 168,00 | 306,00 | 610250714 | Datenblatt | |
| 3 | 4,00 | 9,90 | 115,20 | 230,00 | 610400314 | Datenblatt | |
| 4 | 4,00 | 11,00 | 154,00 | 295,00 | 610400414 | Datenblatt | |
| 5 | 4,00 | 12,10 | 192,00 | 361,00 | 610400514 | Datenblatt | |
| 3 | 6,00 | 11,60 | 174,00 | 355,00 | 610600314 | Datenblatt | |
| 4 | 6,00 | 13,00 | 232,00 | 424,00 | 610600414 | Datenblatt | |
| 5 | 6,00 | 14,50 | 290,00 | 525,00 | 610600514 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
