Multicore cables, PVC - ungeschirmt

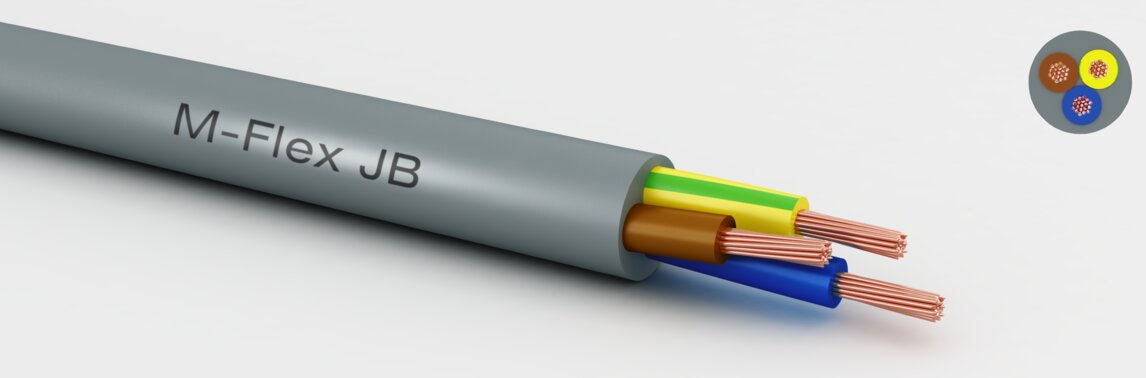

M-Flex-JB
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
VDE0293 HD308 with ye/gn (JB)
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7001 silver grey
technical data
Temperature range static:
-30 to 70 °C
Temperature range moved:
-15 to 70 °C
:
20 MOhm x km bei 20°C (min. )
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
15,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 300 | 500 | 4000 |
- flame retardant
- self-extinguishing
Select visible columns
informationNo.of coresCross sectional area m²CU-Indextotal weight kg/kmArticle numberdatasheet
| No.of cores | Cross sectional area m² | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|---|
| 2 | 0,50 | 4,80 | 9,60 | 40,00 | 610500212 | Datenblatt | |
| 3 | 0,50 | 5,10 | 14,40 | 40,00 | 610500312 | Datenblatt | |
| 4 | 0,50 | 5,70 | 19,20 | 56,00 | 610500412 | Datenblatt | |
| 3 | 0,75 | 5,50 | 21,60 | 54,00 | 610750312 | Datenblatt | |
| 4 | 0,75 | 6,20 | 29,00 | 66,00 | 610750412 | Datenblatt | |
| 5 | 0,75 | 6,80 | 36,00 | 80,00 | 610750512 | Datenblatt | |
| 3 | 1,00 | 6,00 | 29,00 | 72,00 | 610100312 | Datenblatt | |
| 4 | 1,00 | 6,60 | 38,40 | 86,00 | 610100412 | Datenblatt | |
| 5 | 1,00 | 7,20 | 48,00 | 104,00 | 610100512 | Datenblatt | |
| 3 | 1,50 | 6,70 | 43,20 | 78,22 | 610150312 | Datenblatt | |
| 4 | 1,50 | 7,40 | 58,00 | 109,00 | 610150412 | Datenblatt | |
| 5 | 1,50 | 8,20 | 72,00 | 131,00 | 610150512 | Datenblatt | |
| 2 | 2,50 | 7,60 | 48,00 | 112,00 | 610250212 | Datenblatt | |
| 3 | 2,50 | 8,30 | 72,00 | 134,00 | 610250312 | Datenblatt | |
| 5 | 2,50 | 10,20 | 120,00 | 221,00 | 610250512 | Datenblatt |
Certificates
RoHS-konform
REACH konform
CE-Kennzeichnung
UK Conformity Assessment
