Multicore cables, PVC - ungeschirmt

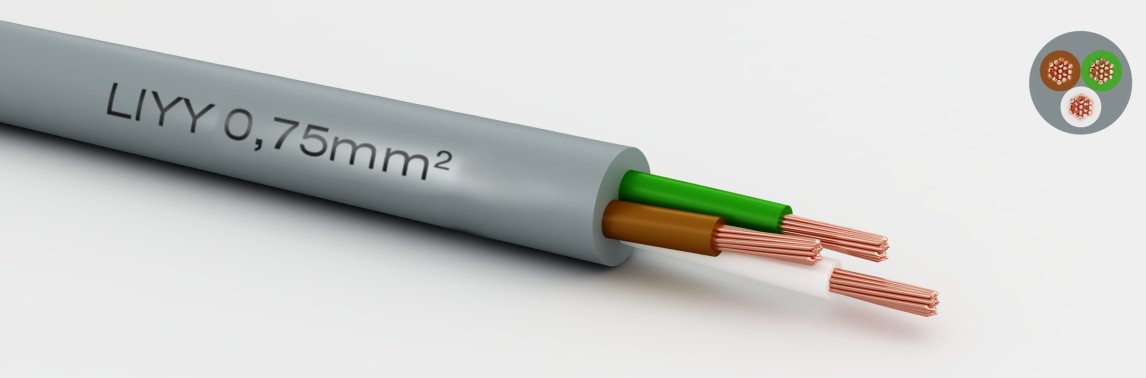

LiYY 0,75mm²
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
24x0,20mm
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
DIN 47100
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7001 silver grey
technical data
Conduct. cross-sect.:
0,75 mm²
Core diameter:
2,00 mm
:
±0,15
Temperature range static:
-40 to 80 °C
Temperature range moved:
-5 to 70 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
26,0 Ohm/km bei 20°C (max.)
static bending radius:
15,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 500 | 1500 |
- flame retardant
- self-extinguishing
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 2 | 5,40 | 14,40 | 42,68 | 601750211 | Datenblatt | |
| 3 | 5,70 | 22,50 | 48,86 | 601750311 | Datenblatt | |
| 4 | 6,20 | 28,80 | 64,00 | 601750411 | Datenblatt | |
| 5 | 7,00 | 36,00 | 77,00 | 601750511 | Datenblatt | |
| 6 | 7,80 | 44,00 | 103,00 | 601750611 | Datenblatt | |
| 7 | 7,80 | 53,00 | 125,00 | 601750711 | Datenblatt | |
| 8 | 8,20 | 58,00 | 126,00 | 601750811 | Datenblatt | |
| 10 | 9,40 | 72,00 | 133,20 | 601751011 | Datenblatt | |
| 12 | 9,80 | 86,40 | 157,00 | 601751211 | Datenblatt | |
| 20 | 12,30 | 144,00 | 280,00 | 601752011 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
