Multicore cables, PVC - ungeschirmt

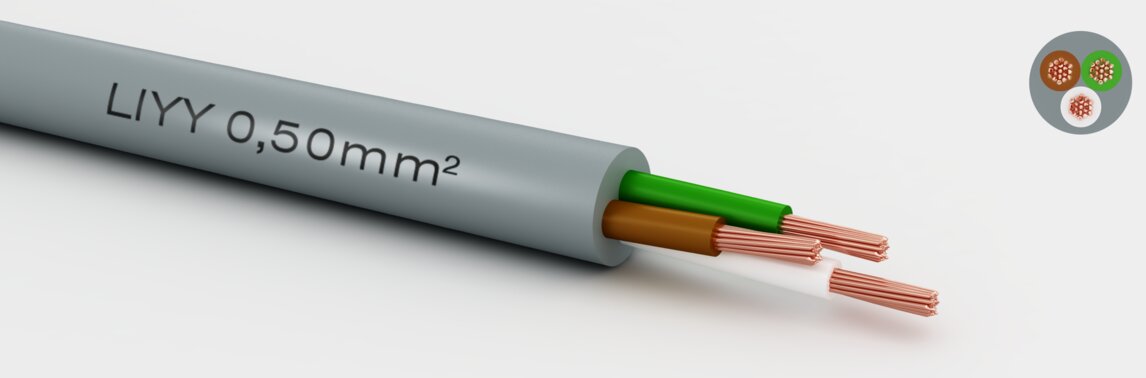

LiYY 0,50mm²
Properties
flame retardant
self-extinguishing
Construction
Conductor:
bare copper acc. to EN 13602
Stranding:
16x0,20mm
Core Isulation:
PVC acc. VDE 0207 / EN 50363-3
Color code cores:
DIN 47100
Outer sheath:
PVC acc. to VDE 0207 / EN 50363-4
Jacket Colour:
RAL 7001 silver grey
technical data
Conduct. cross-sect.:
0,50 mm²
Core diameter:
1,80 mm
:
±0,15
Temperature range static:
-40 to 80 °C
Temperature range moved:
-5 to 70 °C
:
20 MOhm x km bei 20°C (min. )
conductor resist.:
38,9 Ohm/km bei 20°C (max.)
Capacity:
120 pF/m
static bending radius:
5,0 x outer diameter
Bending radius dynamic:
10,0 x outer diameter
Operating Voltage
| Norm | Uo (Vac) | U (Vac) | Temperature °C | Test Voltage (Vac) |
|---|---|---|---|---|
| 500 | 1500 |
- flame retardant
- self-extinguishing
| No.of cores | CU-Index | total weight kg/km | Article number | datasheet | inquiry | |
|---|---|---|---|---|---|---|
| 2 | 5,00 | 10,10 | 40,00 | 601500211 | Datenblatt | |
| 3 | 5,20 | 15,20 | 46,00 | 601500311 | Datenblatt | |
| 4 | 5,70 | 20,30 | 55,00 | 601500411 | Datenblatt | |
| 5 | 6,40 | 25,40 | 64,00 | 601500511 | Datenblatt | |
| 6 | 6,90 | 30,50 | 73,00 | 601500611 | Datenblatt | |
| 7 | 6,90 | 33,60 | 81,00 | 601500711 | Datenblatt | |
| 8 | 8,00 | 40,70 | 83,00 | 601500811 | Datenblatt | |
| 10 | 8,00 | 50,80 | 104,00 | 601501011 | Datenblatt | |
| 12 | 8,40 | 62,50 | 114,00 | 601501211 | Datenblatt | |
| 16 | 10,10 | 76,80 | 150,20 | 601501611 | Datenblatt | |
| 20 | 11,60 | 102,00 | 213,00 | 601502011 | Datenblatt | |
| 24 | 12,70 | 122,00 | 241,00 | 601502411 | Datenblatt | |
| 27 | 13,50 | 132,00 | 274,00 | 601502711 | Datenblatt | |
| 30 | 13,40 | 160,00 | 601503011 | Datenblatt | ||
| 32 | 14,50 | 162,00 | 364,00 | 601503211 | Datenblatt | |
| 40 | 15,00 | 197,80 | 391,00 | 601504011 | Datenblatt |
Certificates
REACH konform
RoHS-konform
CE-Kennzeichnung
UK Conformity Assessment
